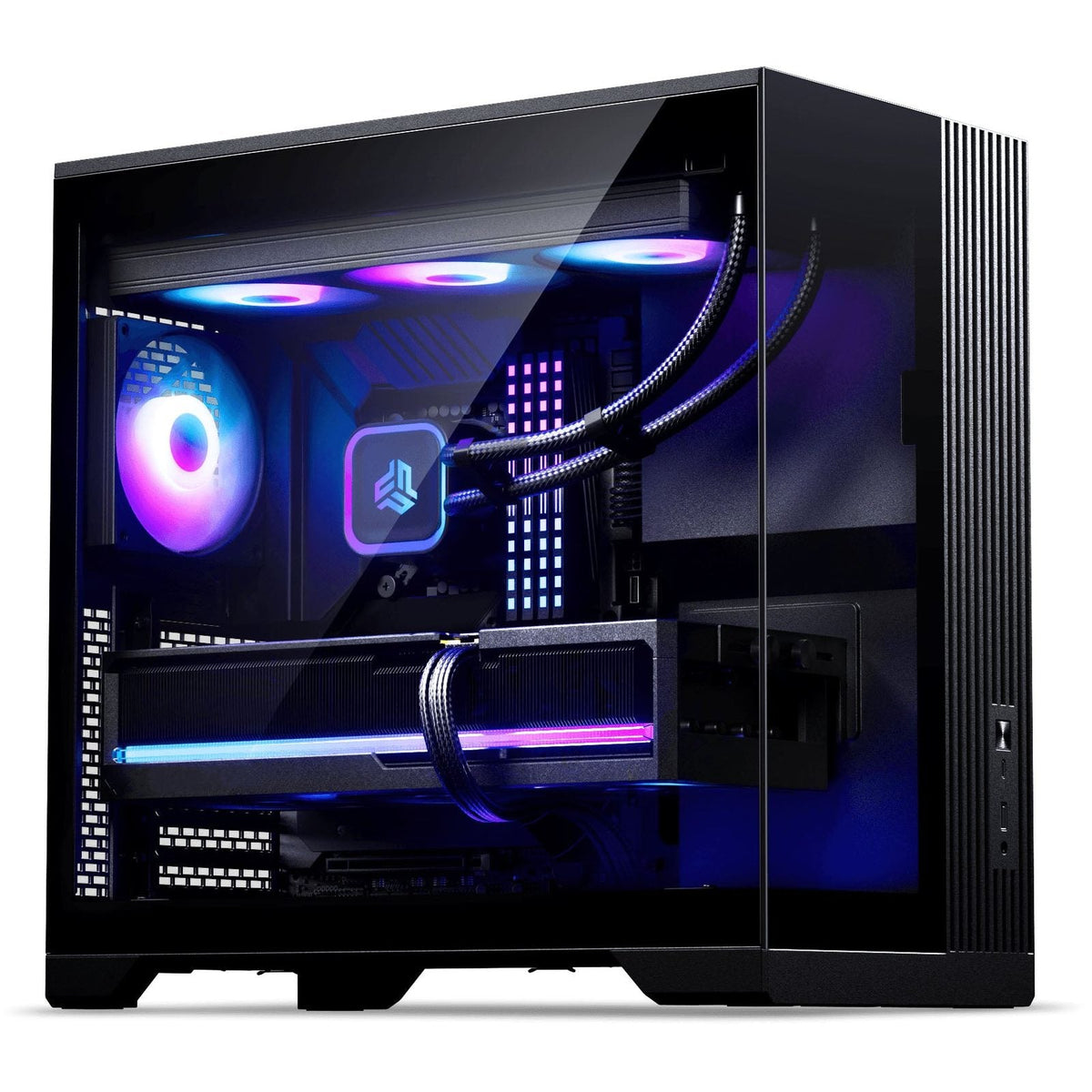

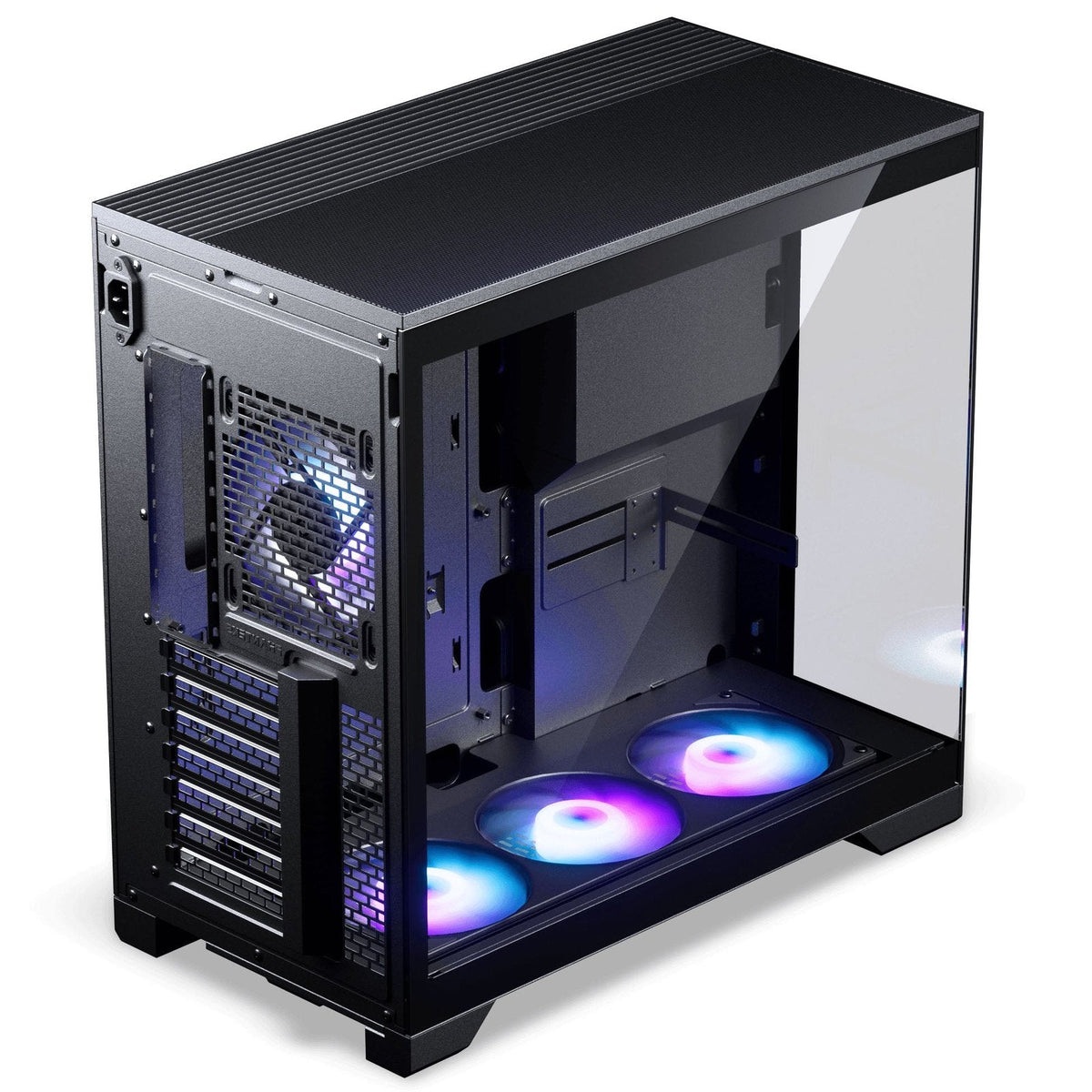

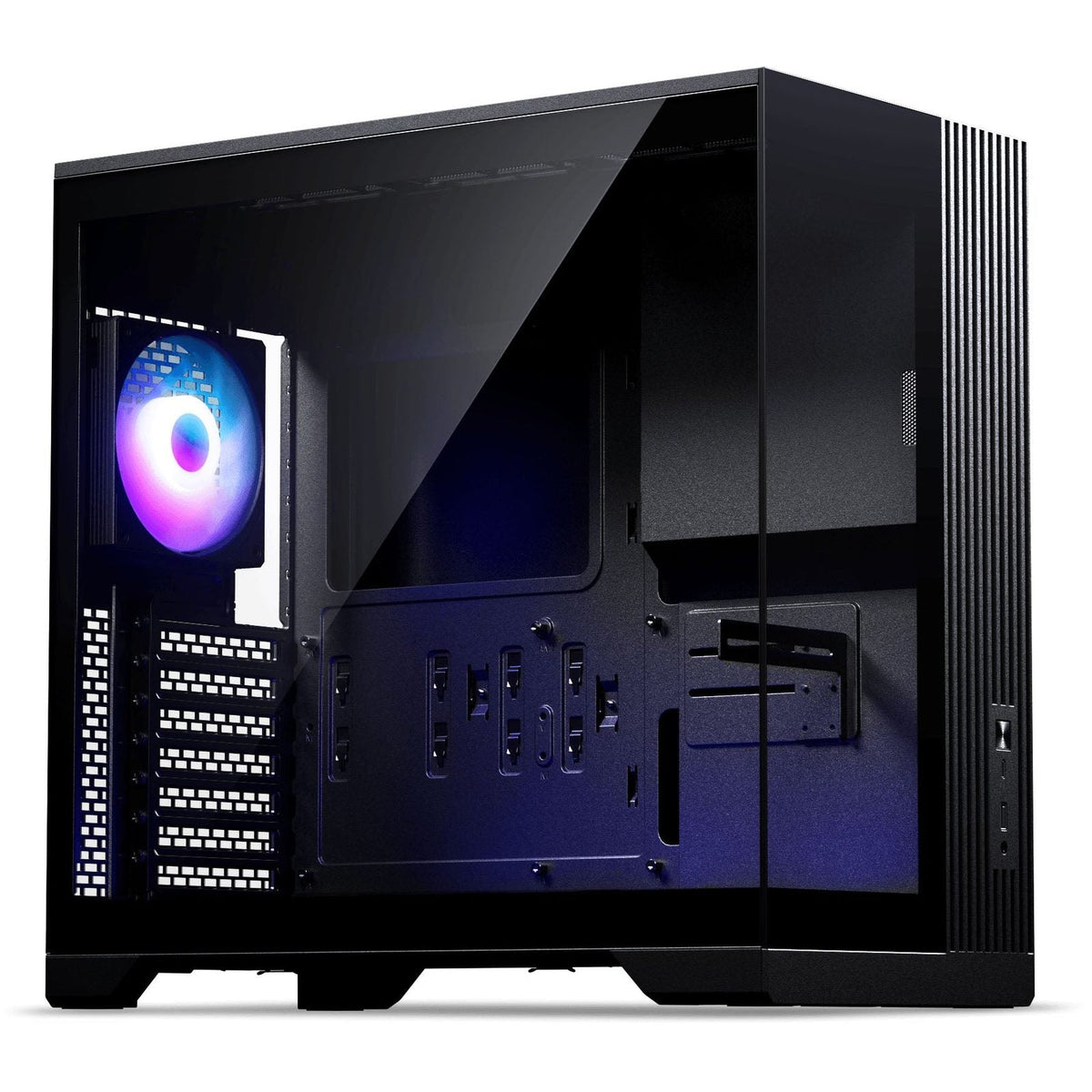

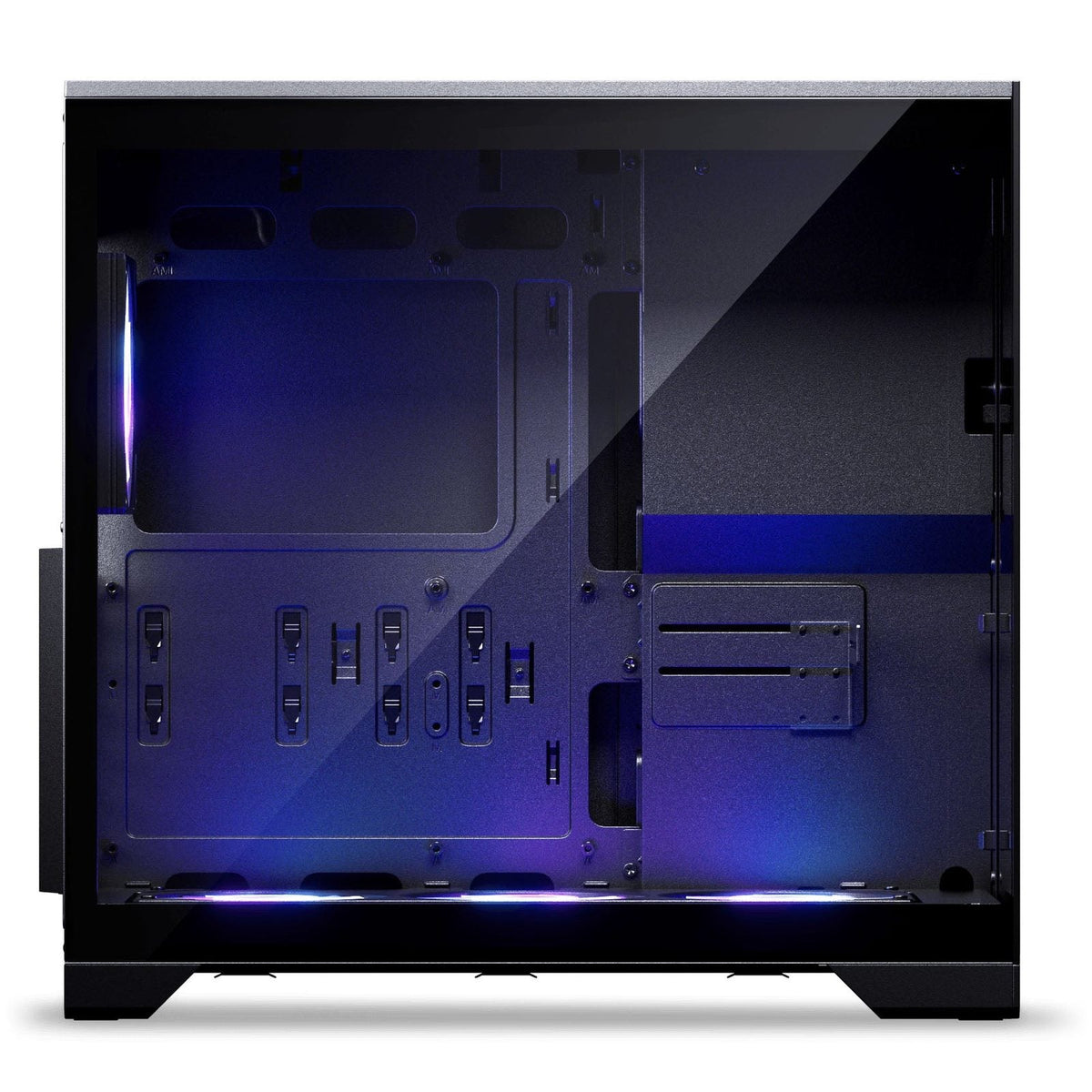

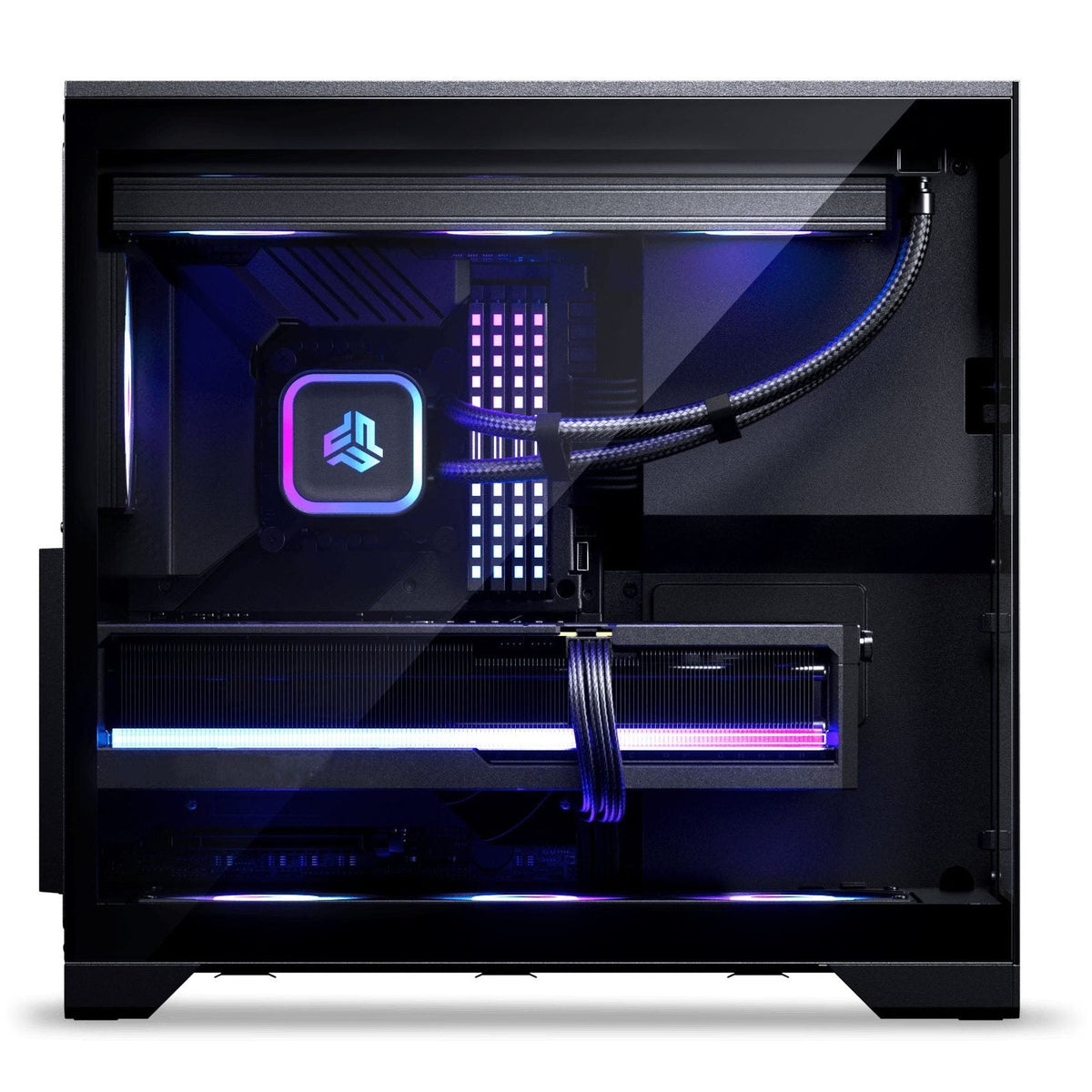

Phanteks XT V5 Compact Black TG ATX Case

The Phanteks XT V5 is a compact mid-tower ATX case in black, designed to deliver strong airflow, broad hardware compatibility, and a clean showcase aesthetic. Its compact footprint accommodates full-sized components, including the latest high-performance graphics cards and ATX power supplies, making it a versatile foundation for gaming, content creation, and enthusiast builds.

Key Features

• Compact ATX mid-tower chassis finished in black with a panoramic tempered glass side panel
• Supports ATX, Micro-ATX, and Mini-ITX motherboards
• Up to 7 x 120mm fan mounts across the rear, top, and bottom positions
• Pre-installed cooling fans included out of the box
• 360mm radiator support at the top for custom liquid cooling
• Storage for up to 2 x 2.5" SSDs and 1 x 3.5" HDD
• Cable management with routing channels, motherboard tray clearance, and tie-down points
• Dust filters included
• Constructed from ABS, steel, and tempered glass
• GPU support bracket included to stabilise larger graphics cards

Hardware Compatibility

• Graphics cards up to 430mm in length and 175mm in width
• CPU coolers up to 175mm in height
• ATX power supplies up to 159mm in depth
• 7 expansion slots

Front I/O

• 1 x USB Type-C (USB 3.2)
• 1 x USB Type-A (USB 3.0)
• 1 x 3.5mm combined headphone and microphone jack
