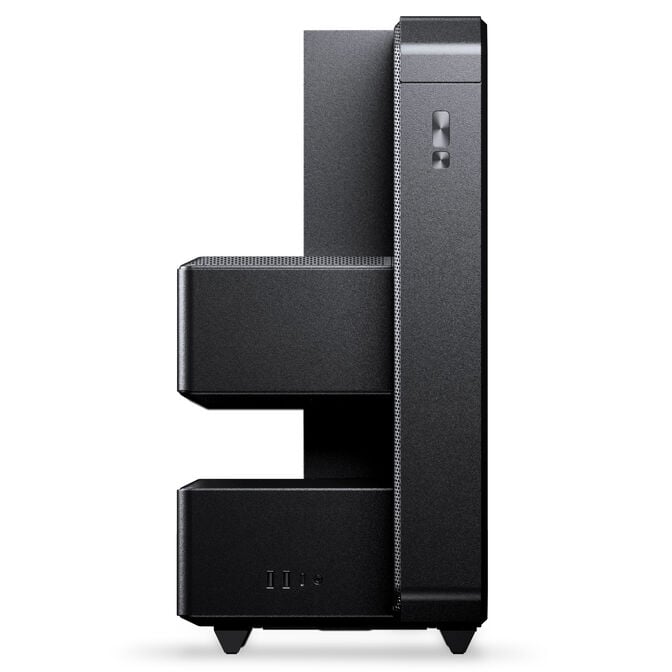

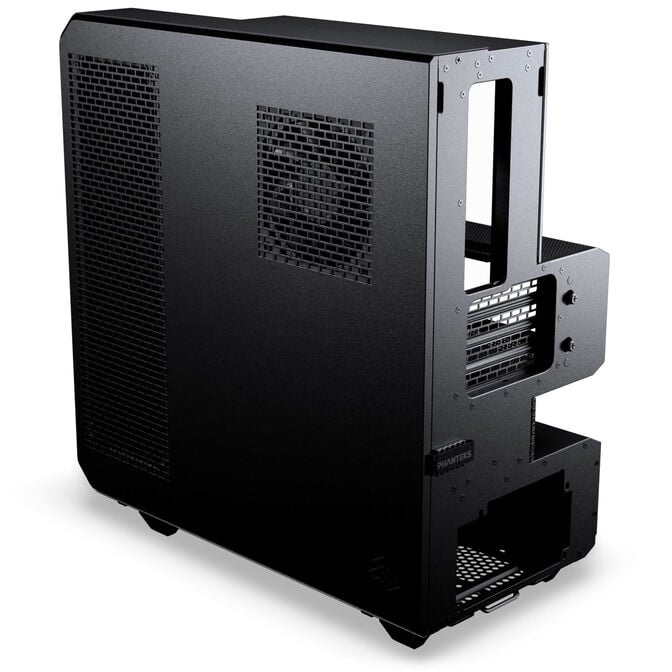

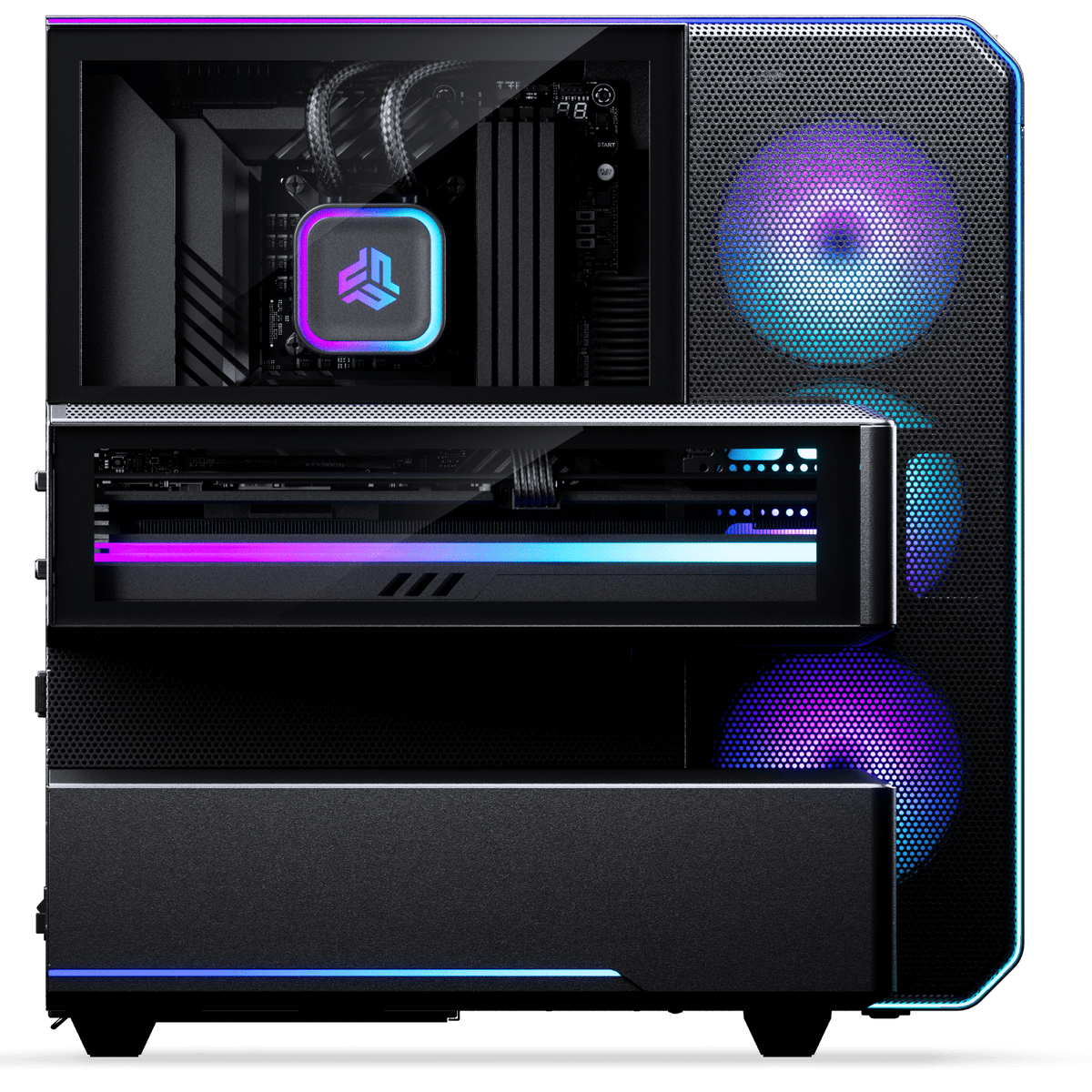

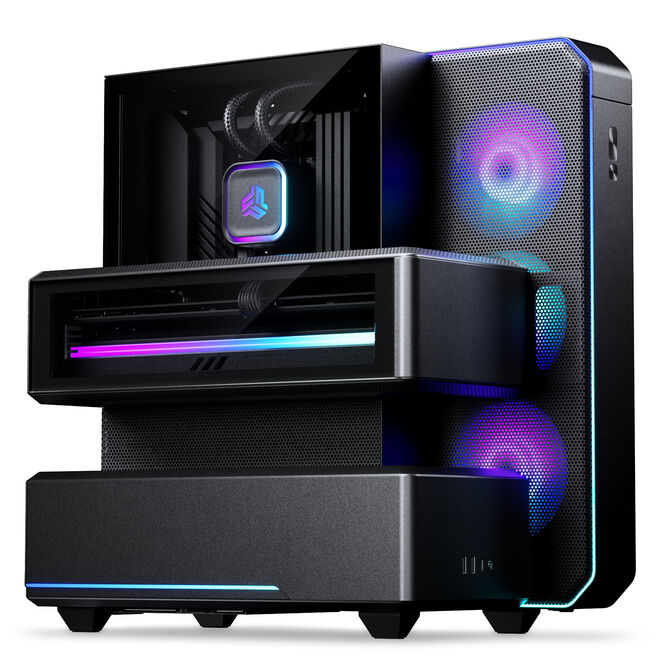

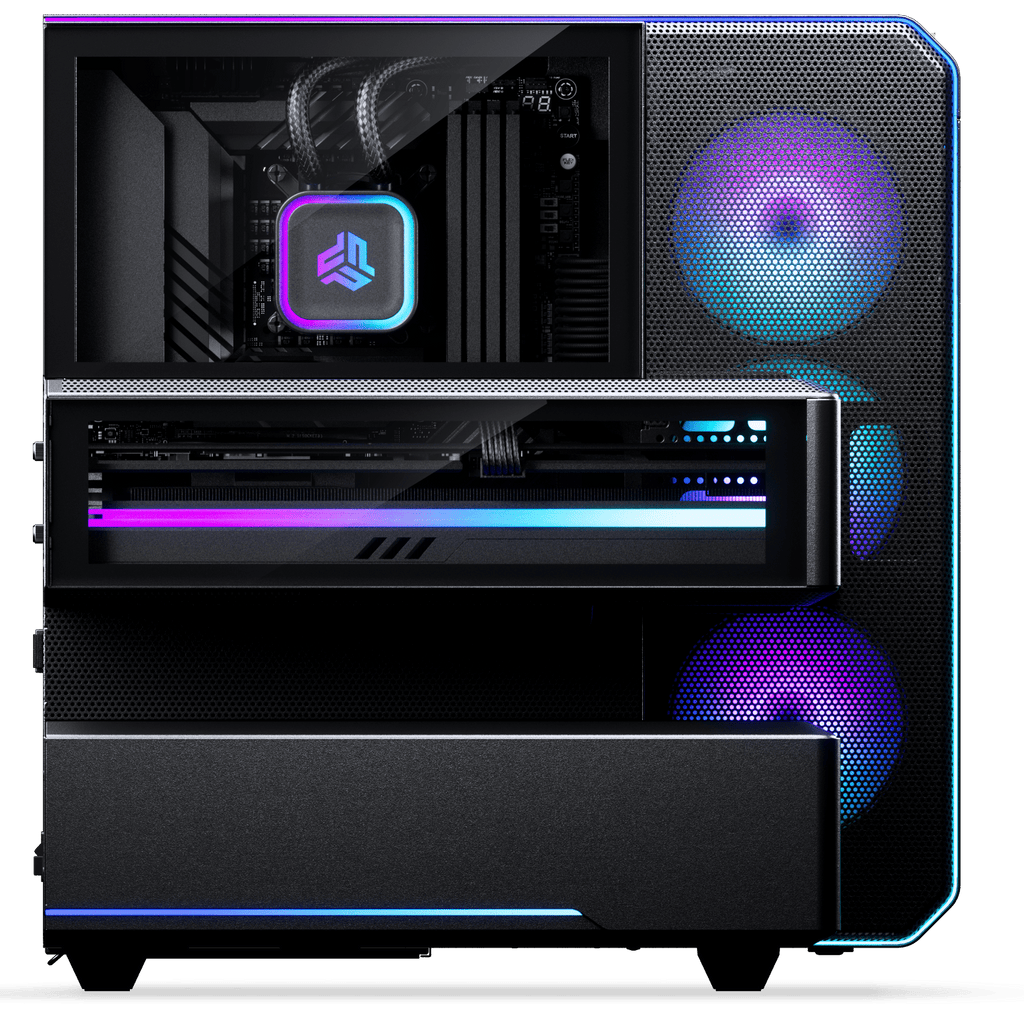

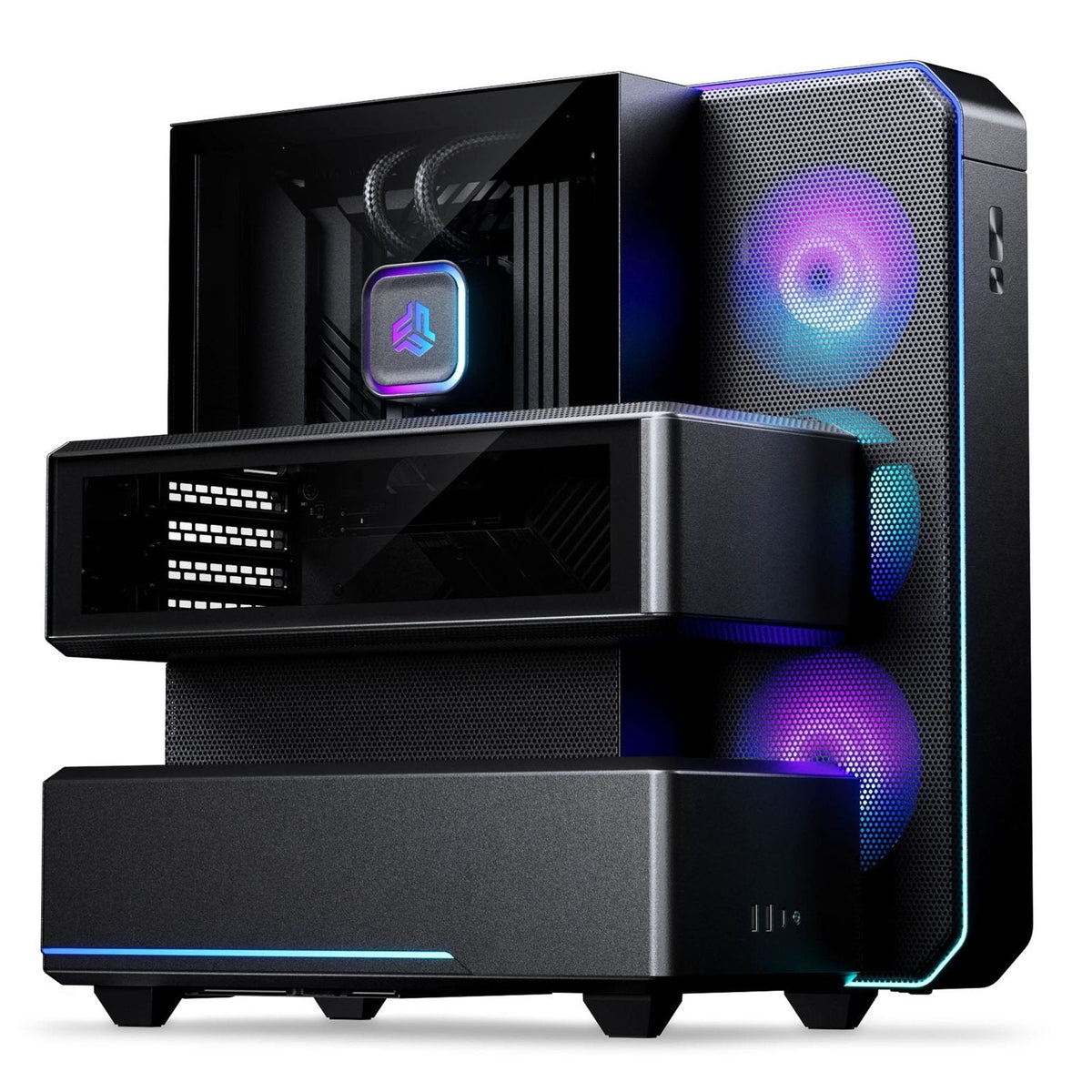

Phanteks EX5 PLUS High Airflow ATX Chamber Case with 360 AIO - Satin Black

The Phanteks EX5 PLUS is a mid-tower ATX case featuring an innovative compartmentalised design that isolates the motherboard, GPU, and PSU into individual chambers. This layout facilitates direct cooling for each component, significantly reducing the need for additional case fans.

Key Features

• Compartmentalised Layout: Separates key components for optimised airflow and a clean aesthetic.
• Included 360mm AIO Cooler: Pre-installed liquid CPU cooler for immediate, simplified installation.
• Minimal Fan Requirements: Effective cooling achieved with just four 120mm fans.
• Comprehensive ARGB Lighting: Integrated light strips in the PSU and AIO chambers for vibrant illumination.
• Robust GPU Chamber: Aluminium and tempered glass enclosure securely holds GPUs up to 358mm in length.

Cooling Design

The unique chamber design allows each hardware component to be cooled directly by its own thermal solution. The motherboard tray accommodates a single 120mm fan behind the board to cool the CPU, VRMs, and RAM. The GPU and PSU chambers feature porous mesh panels for direct fresh air intake, ensuring optimal temperatures without relying on exhaust heat from other components.

Compatibility

• Motherboard: Supports Mini-ITX, Micro-ATX, and ATX form factors.
• Graphics Card: Accommodates full-length GPUs up to 358mm and 3.5-slot thickness.
• Power Supply: Supports ATX PSUs up to 210mm in length.
