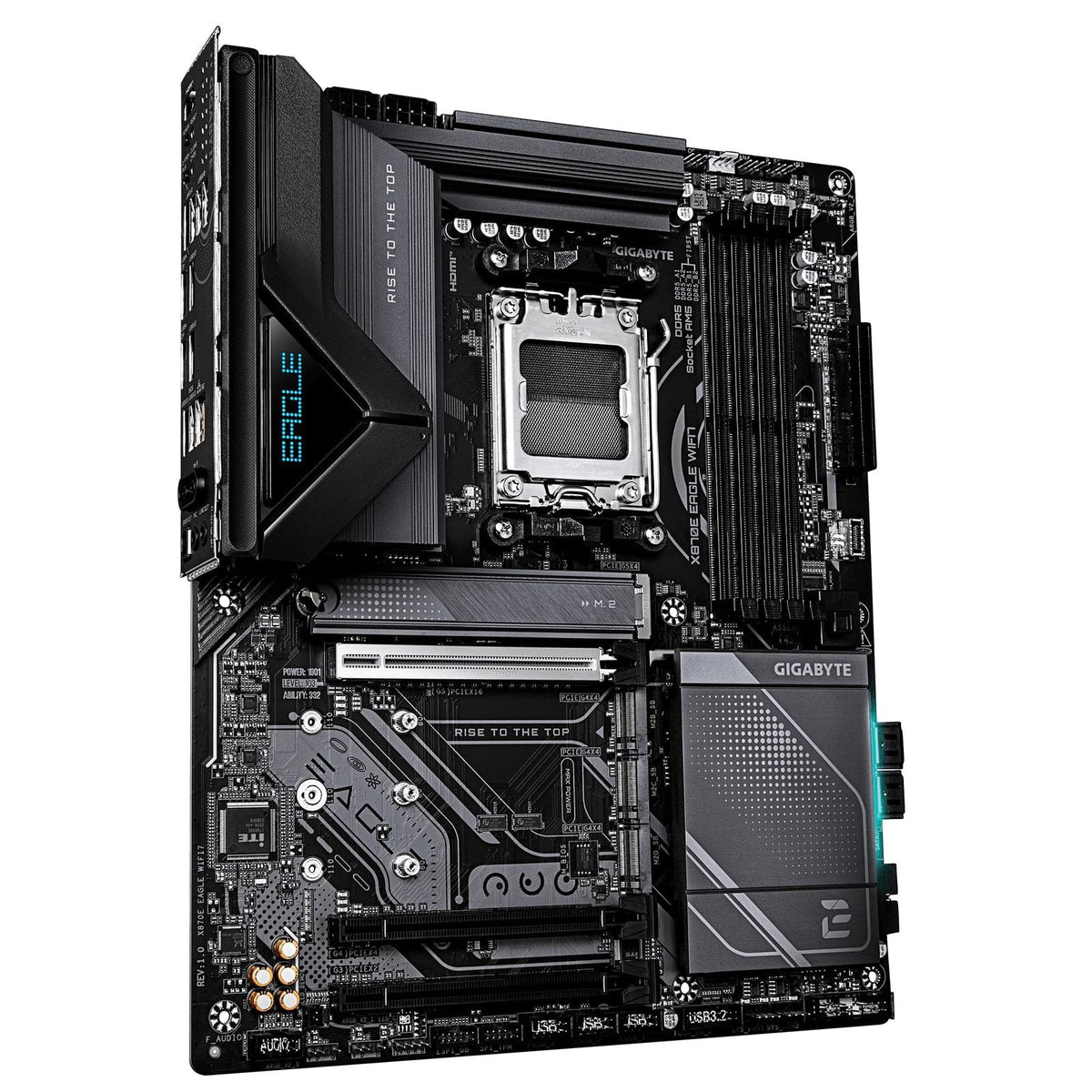

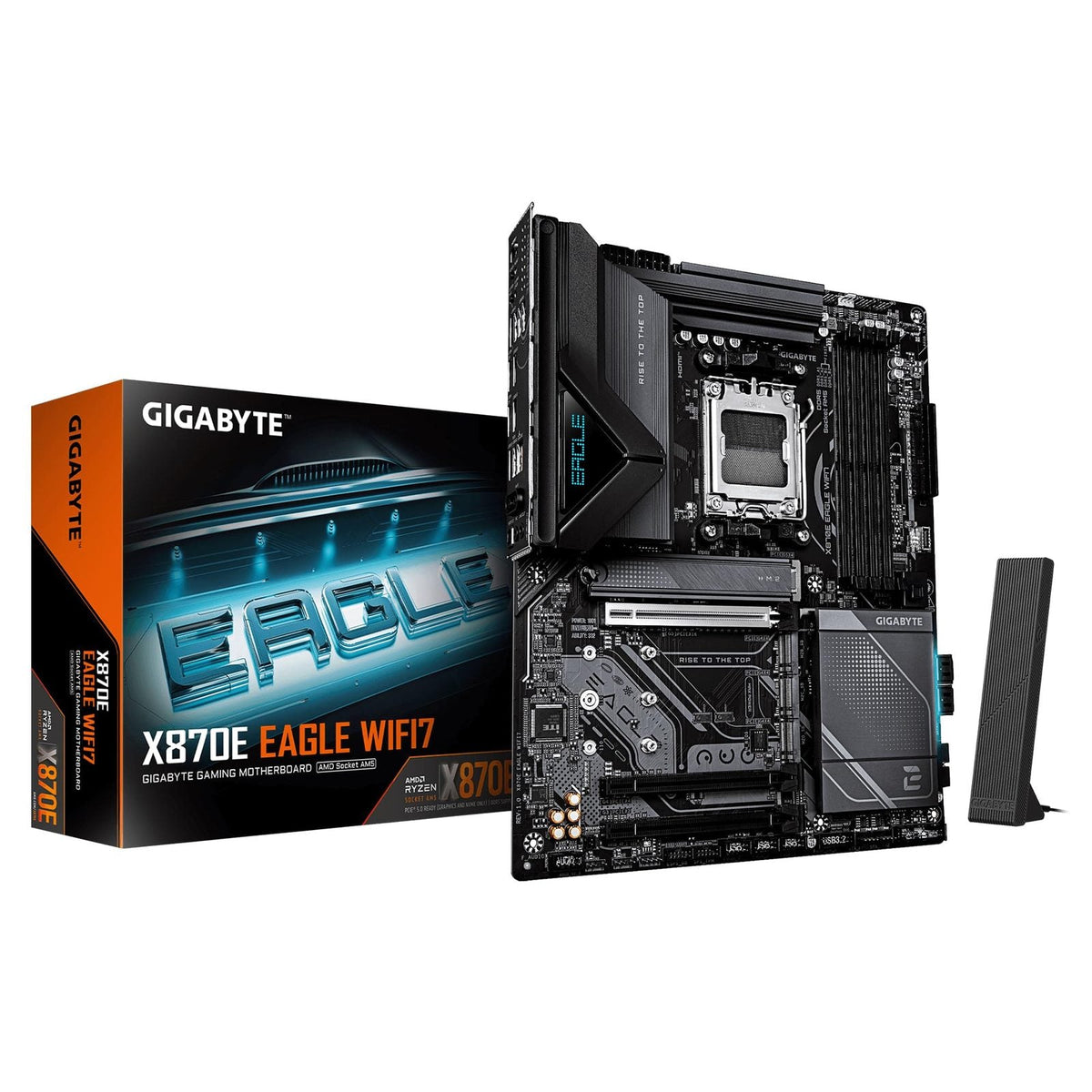

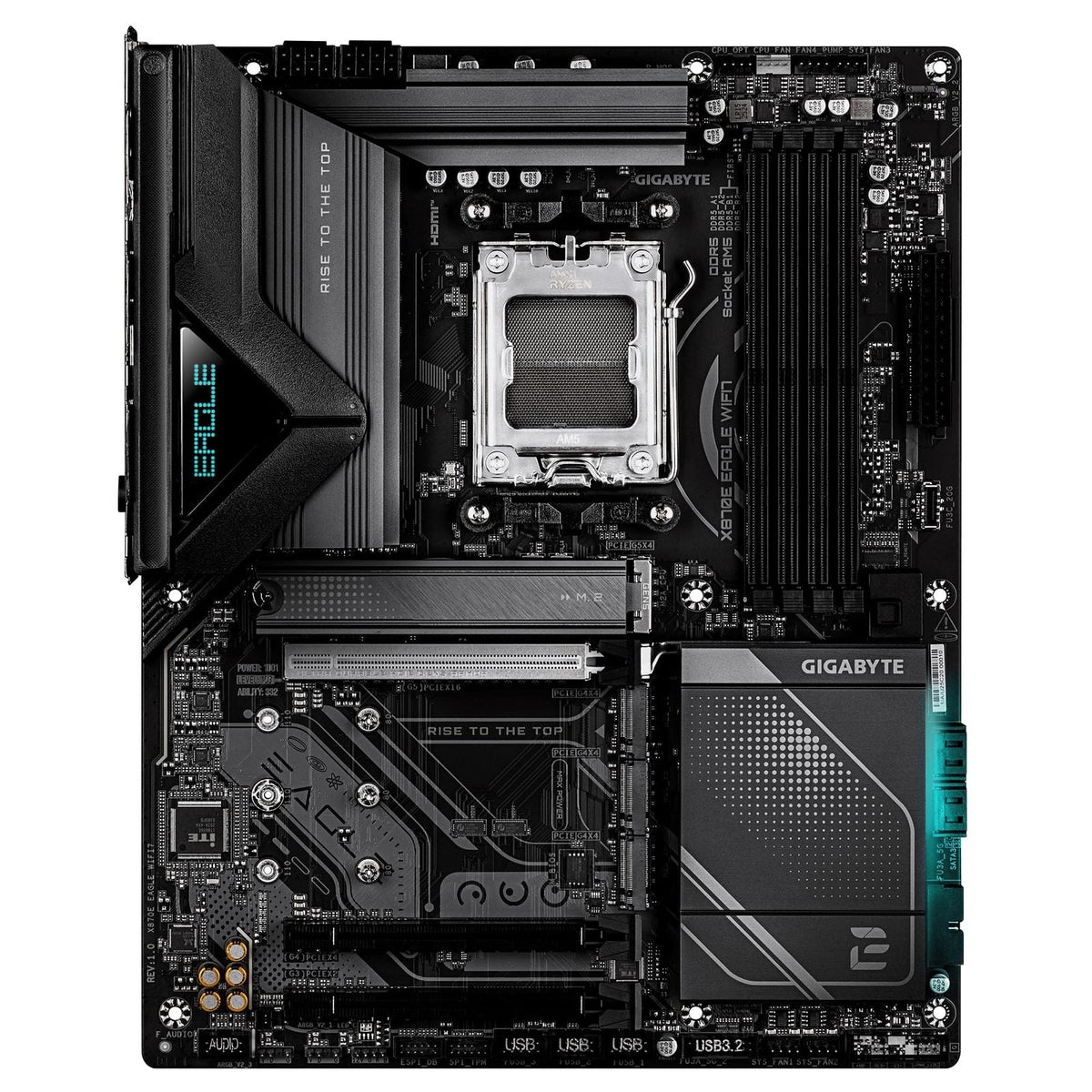

Gigabyte X870E EAGLE WIFI7 ATX AM5 Motherboard

The GIGABYTE X870E EAGLE WIFI7 is an ATX motherboard built on the AMD X870E chipset for Socket AM5, supporting AMD Ryzen 7000, 8000, and 9000 Series processors. It offers a balanced platform for gaming, content creation, and professional workloads.

Key Features

• Power Delivery: 16+2+2 phase digital VRM for stable CPU power.
• Memory Support: DDR5 memory with speeds up to 8200 MHz (OC), 4 DIMM slots, and a maximum capacity of 256 GB.
• Storage Options: 4 M.2 slots (1x PCIe 5.0, 3x PCIe 4.0) and 4 SATA ports with RAID 0, 1, 5, 10 support.
• Networking: 5GbE LAN and Wi-Fi 7 with Bluetooth 5.4 for high-speed wired and wireless connectivity.
• USB Connectivity: Includes 2 USB4 Type-C ports for fast data transfer and display output.

I/O & Connectivity

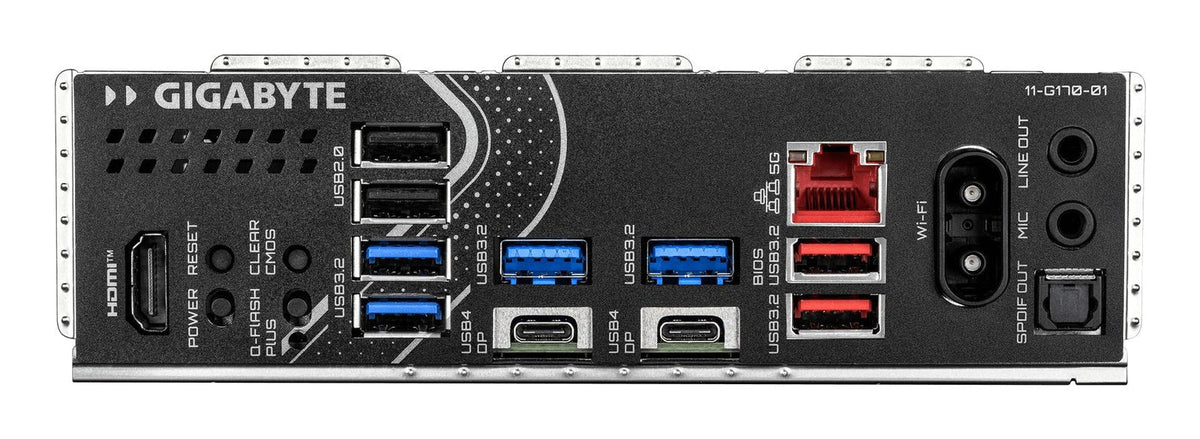

• Rear USB Ports: 2x USB4 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, and 2x USB 2.0 ports.
• Audio: Realtek ALC1220 codec for 7.1-channel HD audio with audiophile-grade capacitors.
• Display Outputs: HDMI 2.1 and DisplayPort 1.4 via USB4 ports, supporting resolutions up to 4096 x 2304.
• Additional Features: Reset button, Clear CMOS button, and Q-Flash Plus for easy BIOS management.
