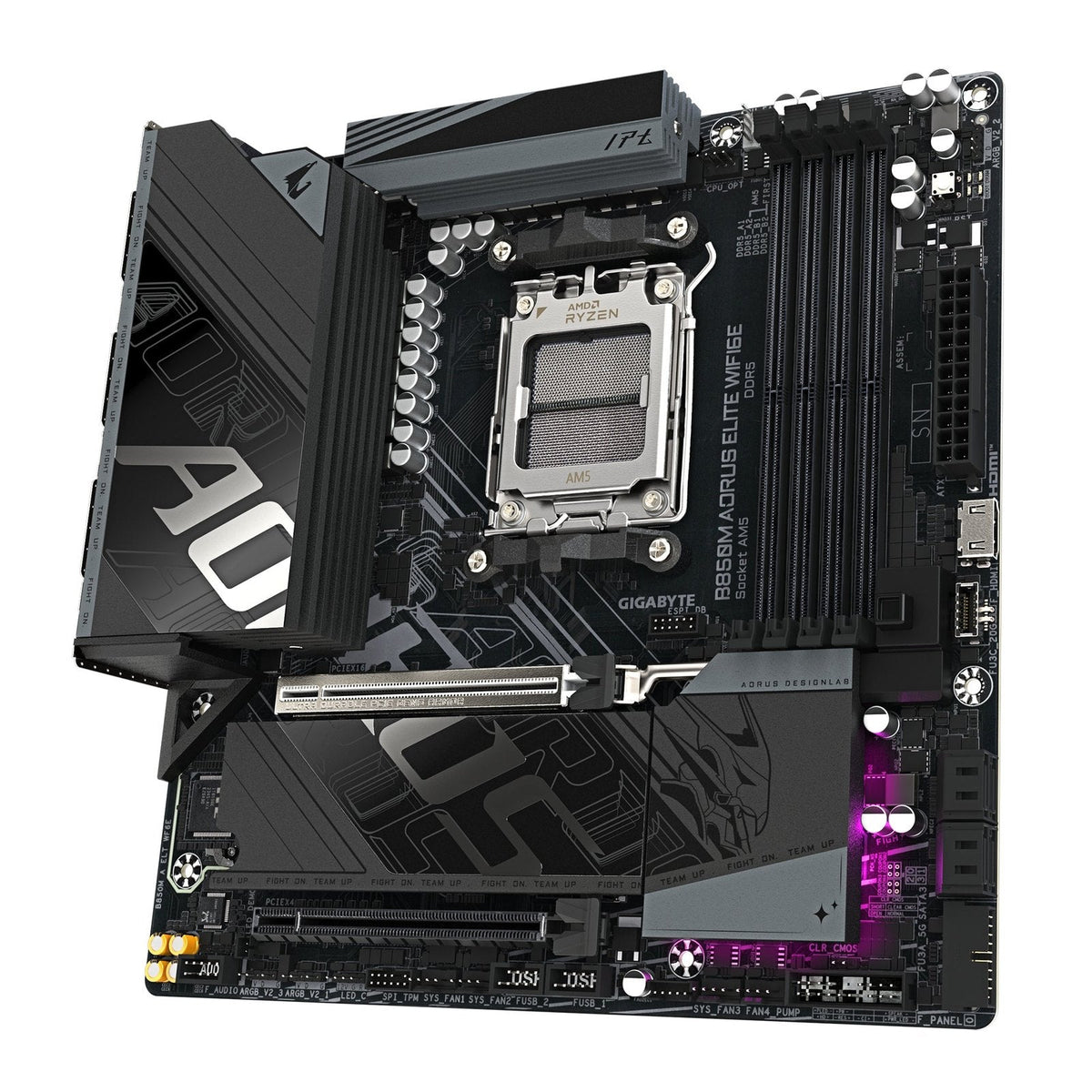

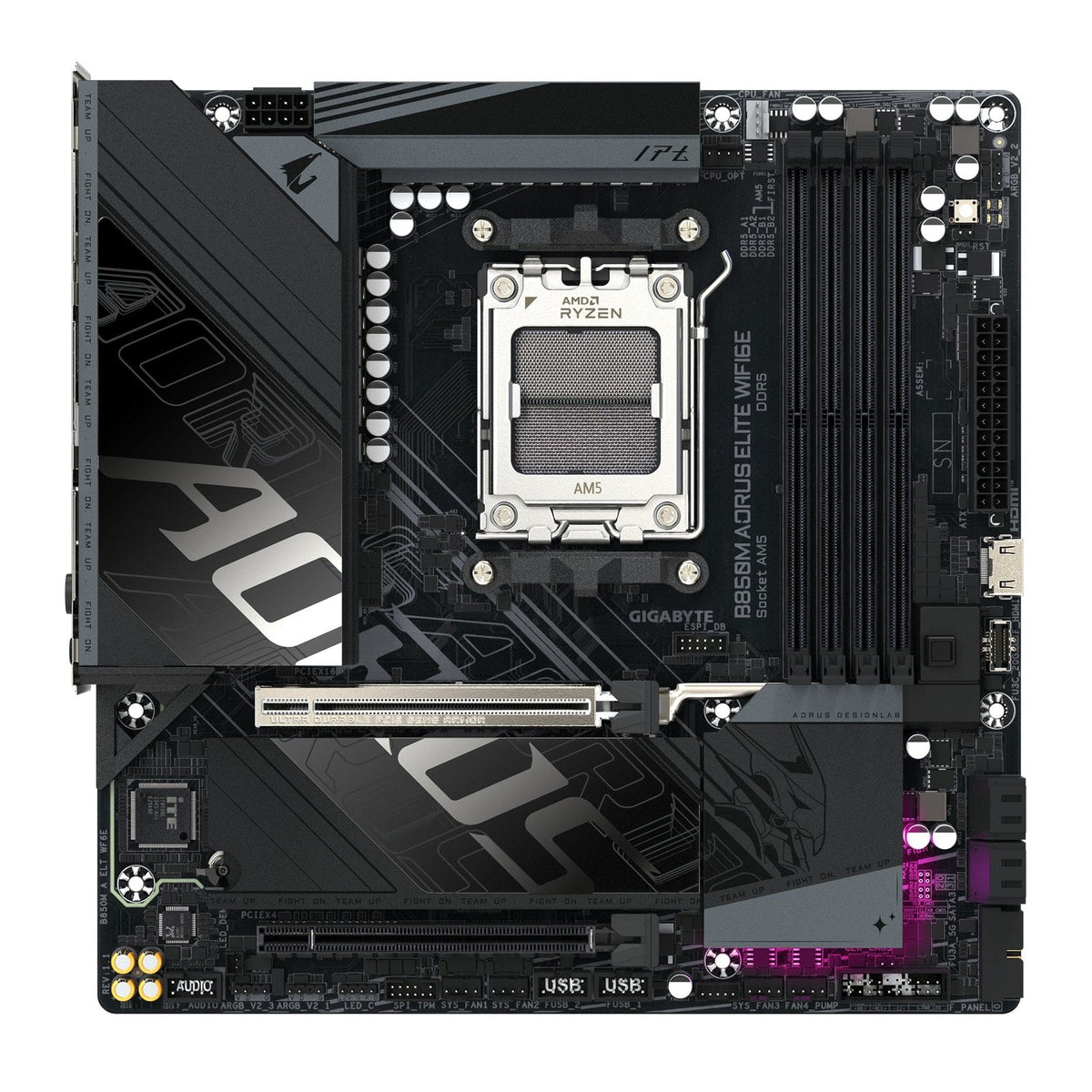

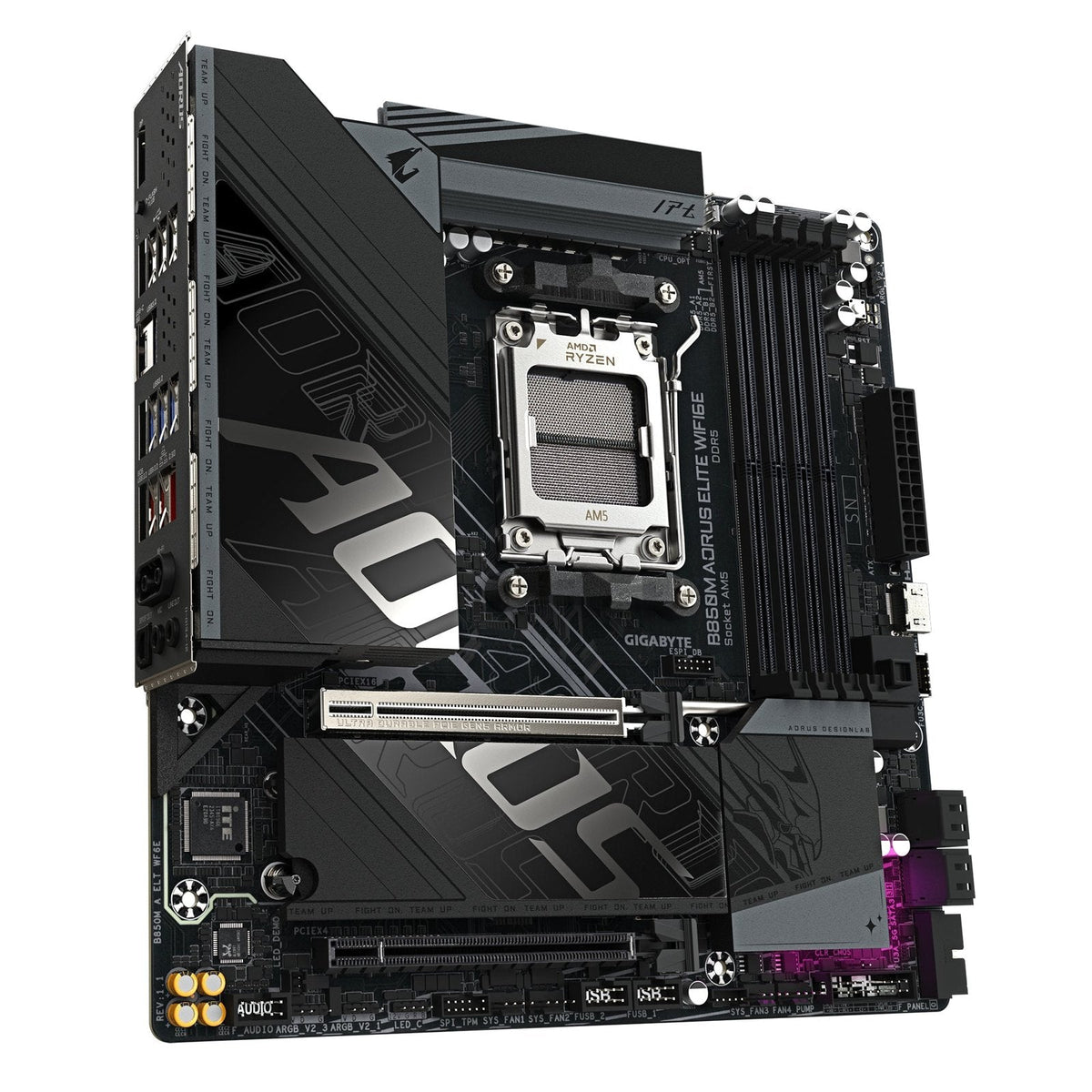

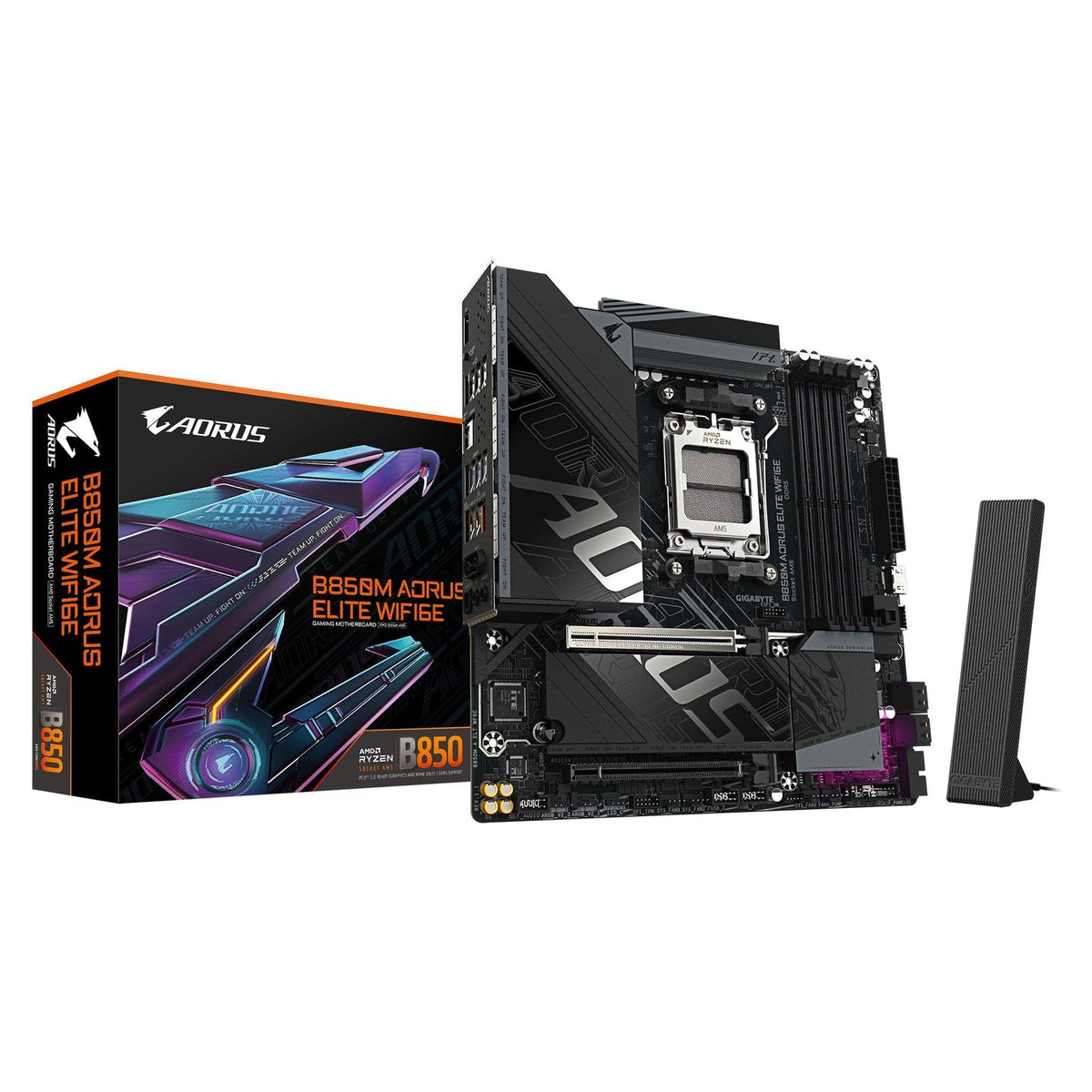

Gigabyte B850M AORUS ELITE WIFI6E AM5 DDR5 Micro ATX Motherboard

The Gigabyte B850M AORUS ELITE WIFI6E is a Micro-ATX motherboard for the AMD AM5 socket, supporting Ryzen 9000, 8000, and 7000 Series processors. It features DDR5 memory up to 8200 MT/s, a 12+2+2 phase VRM, two M.2 slots including PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN, and USB 3.2 Gen 2 connectivity.

Key Features

• AMD AM5 Socket: Compatible with Ryzen 9000, 8000, and 7000 Series CPUs.
• DDR5 Memory Support: 4 DIMM slots for up to 256 GB, speeds reaching 8200 MT/s.
• Robust Power Delivery: 12+2+2 phase digital VRM for stable performance.
• High-Speed Storage: Two M.2 slots, one PCIe 5.0 x4 and one PCIe 4.0 x4, plus four SATA connectors.
• Wireless Networking: Wi-Fi 6E with Bluetooth 5.3 for fast connections.
• Ethernet: 2.5GbE LAN for reliable wired networking.

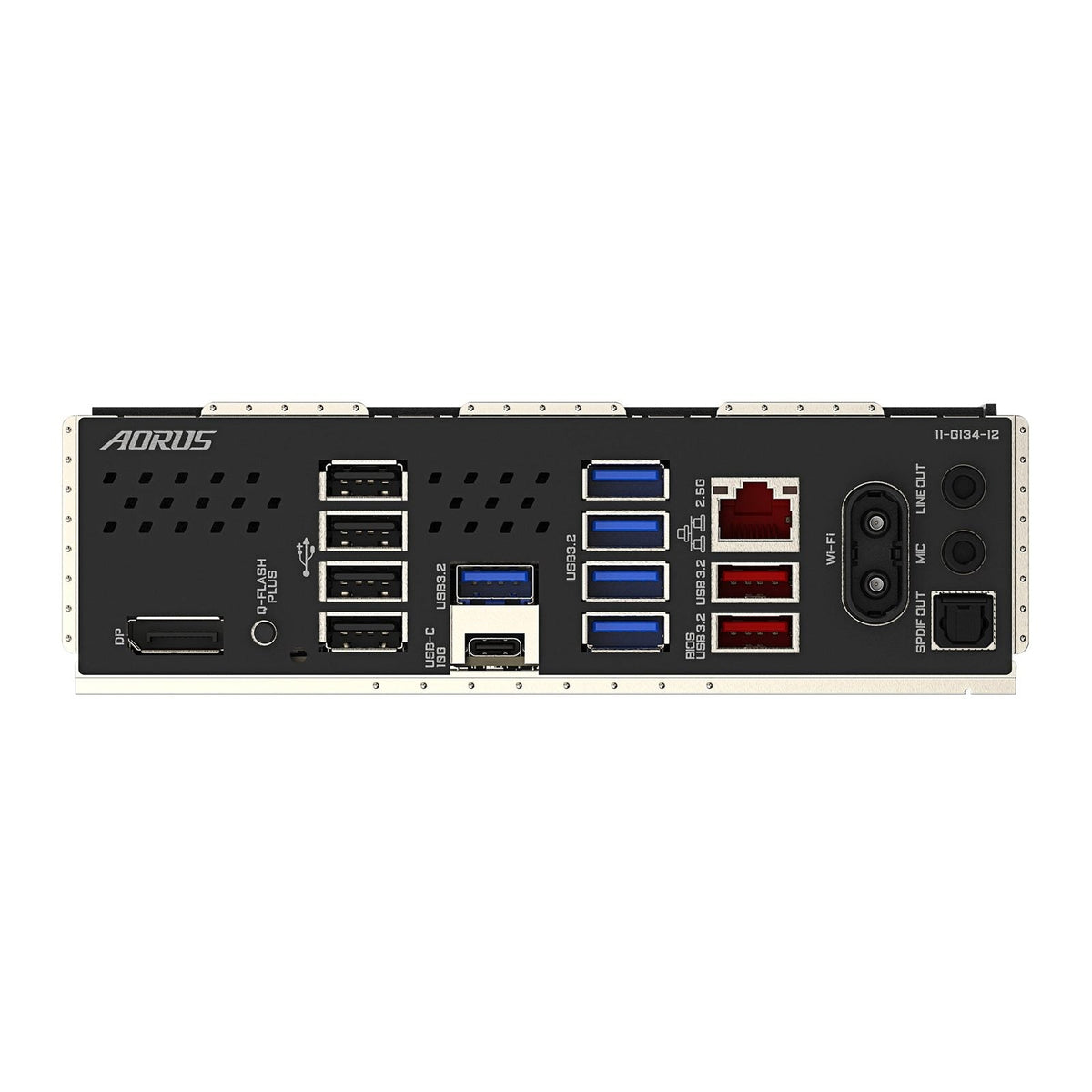

• USB Connectivity: Multiple USB 3.2 Gen 2 and Gen 1 ports, including a Type-C port.

Connectivity and Compatibility

Includes HDMI 1.4 and DisplayPort 1.4 for display output, 7.1-channel audio with S/PDIF out, and supports Windows 10 and 11. The Micro-ATX form factor measures 244 mm x 244 mm, suitable for compact builds.
