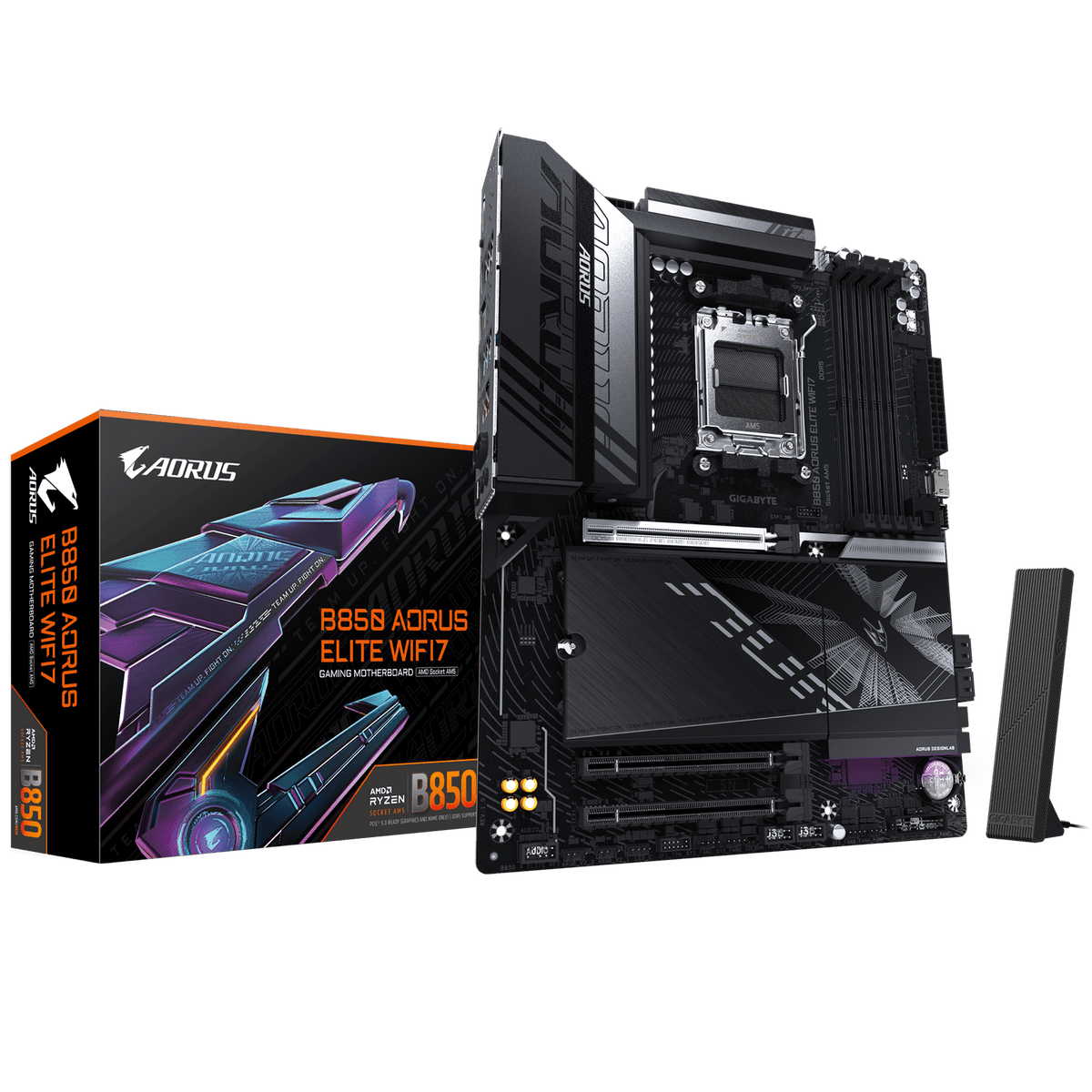

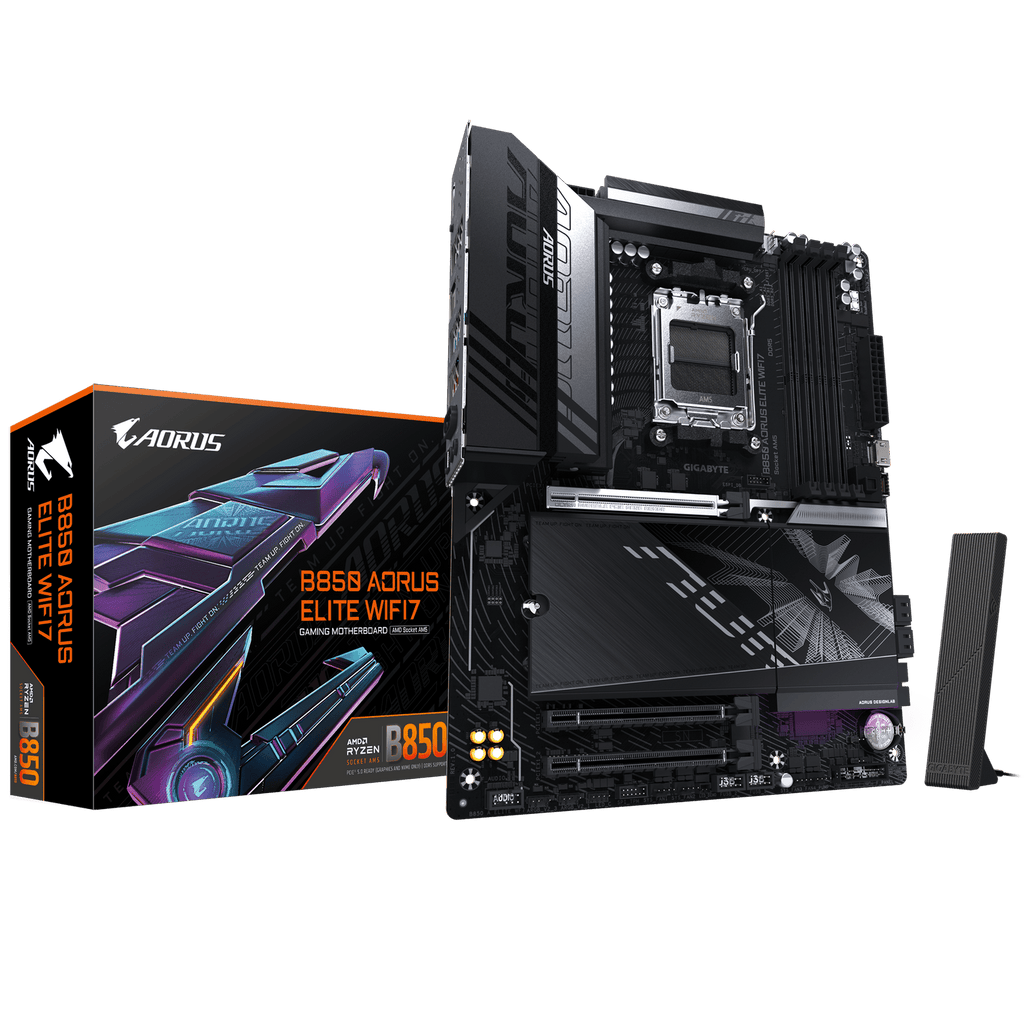

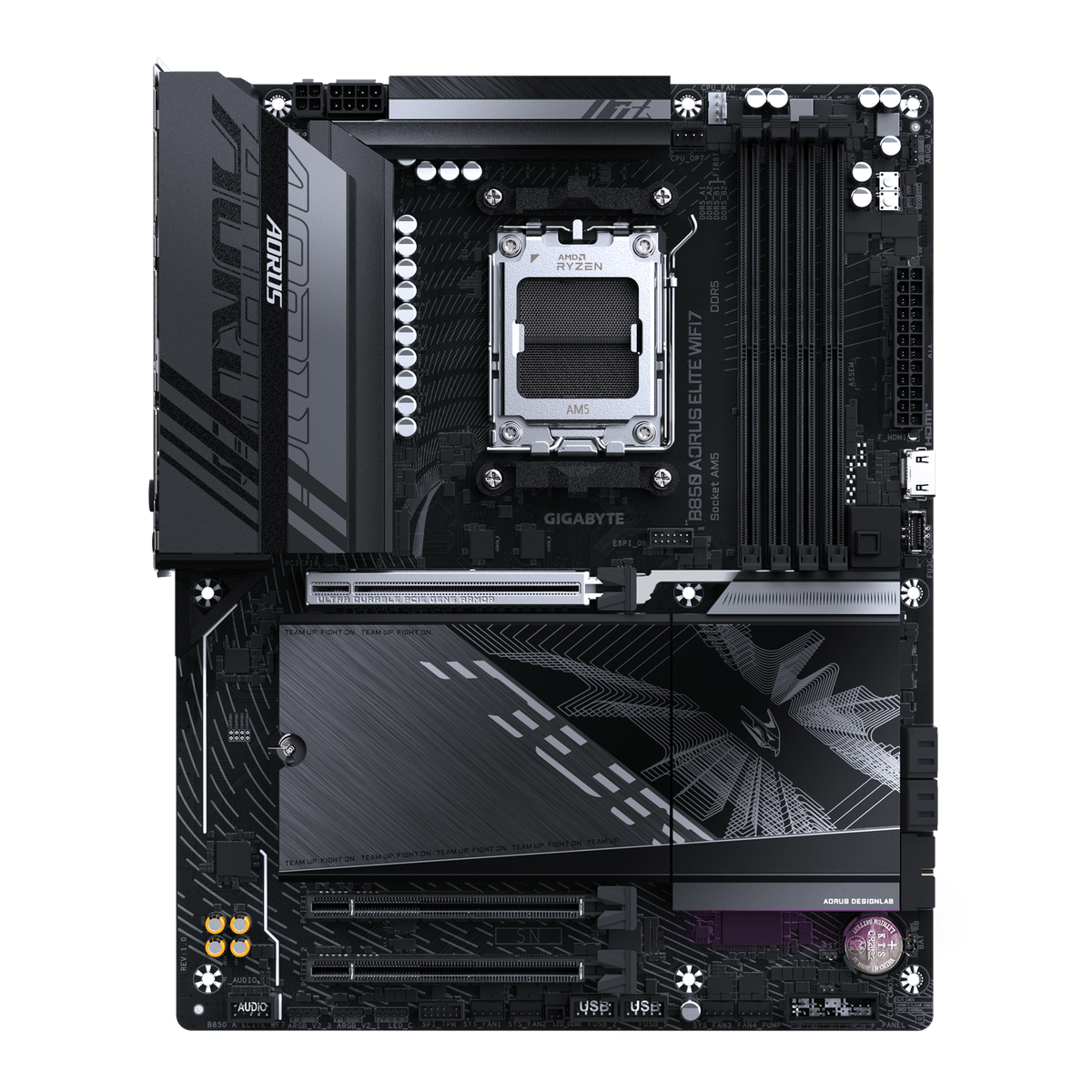

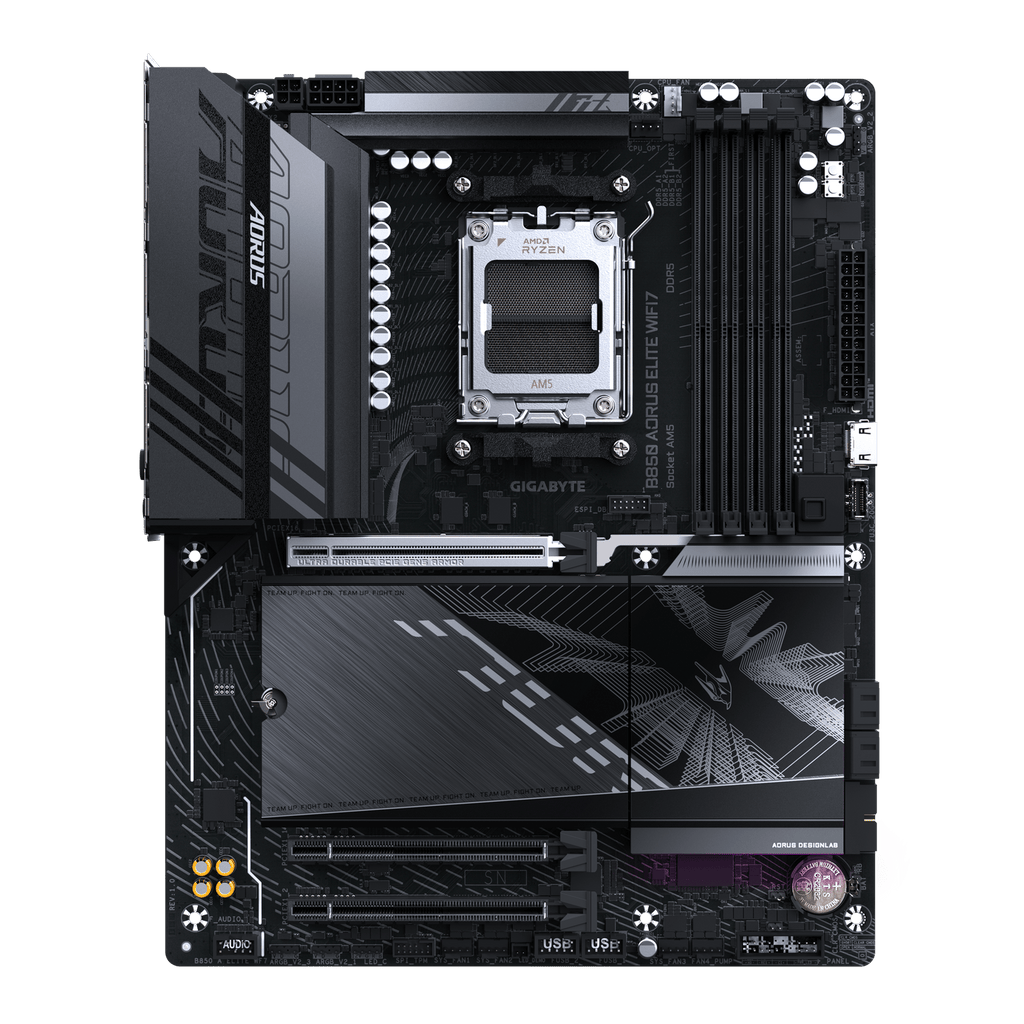

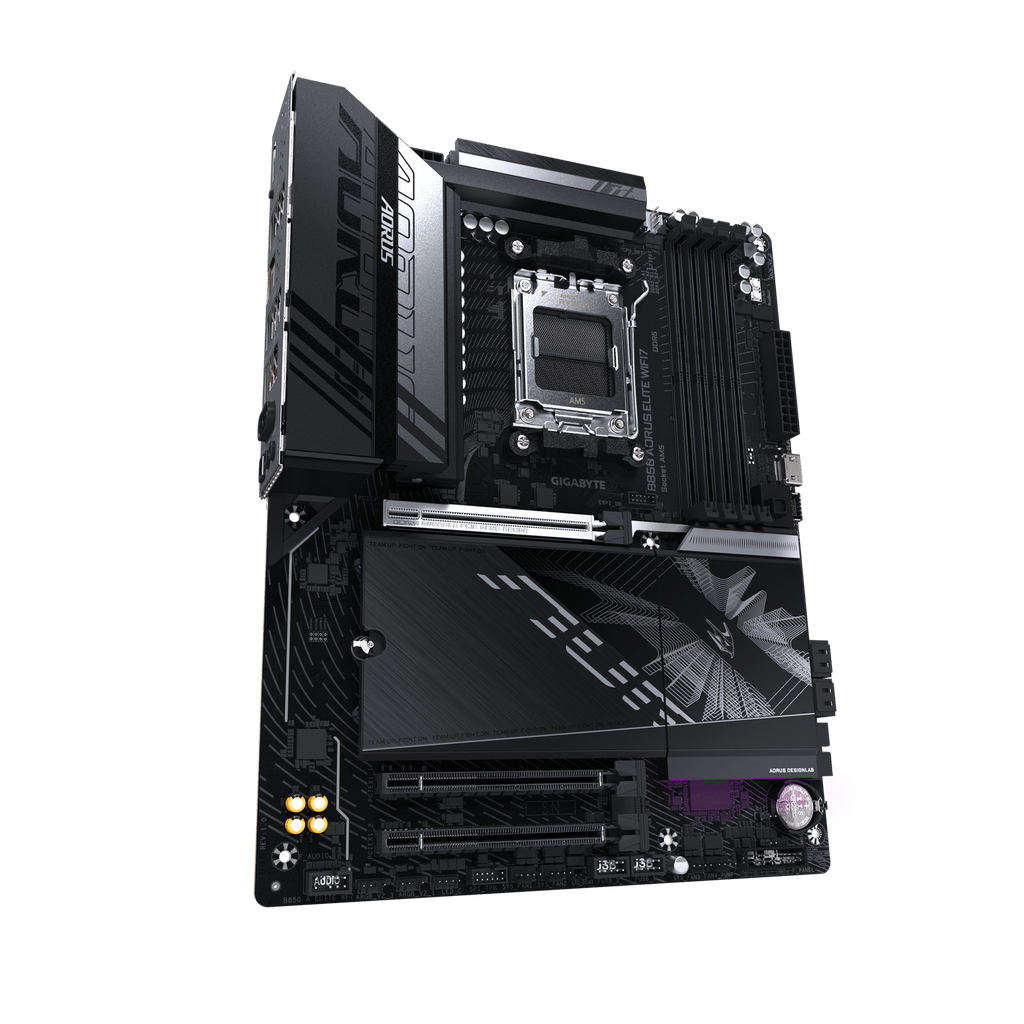

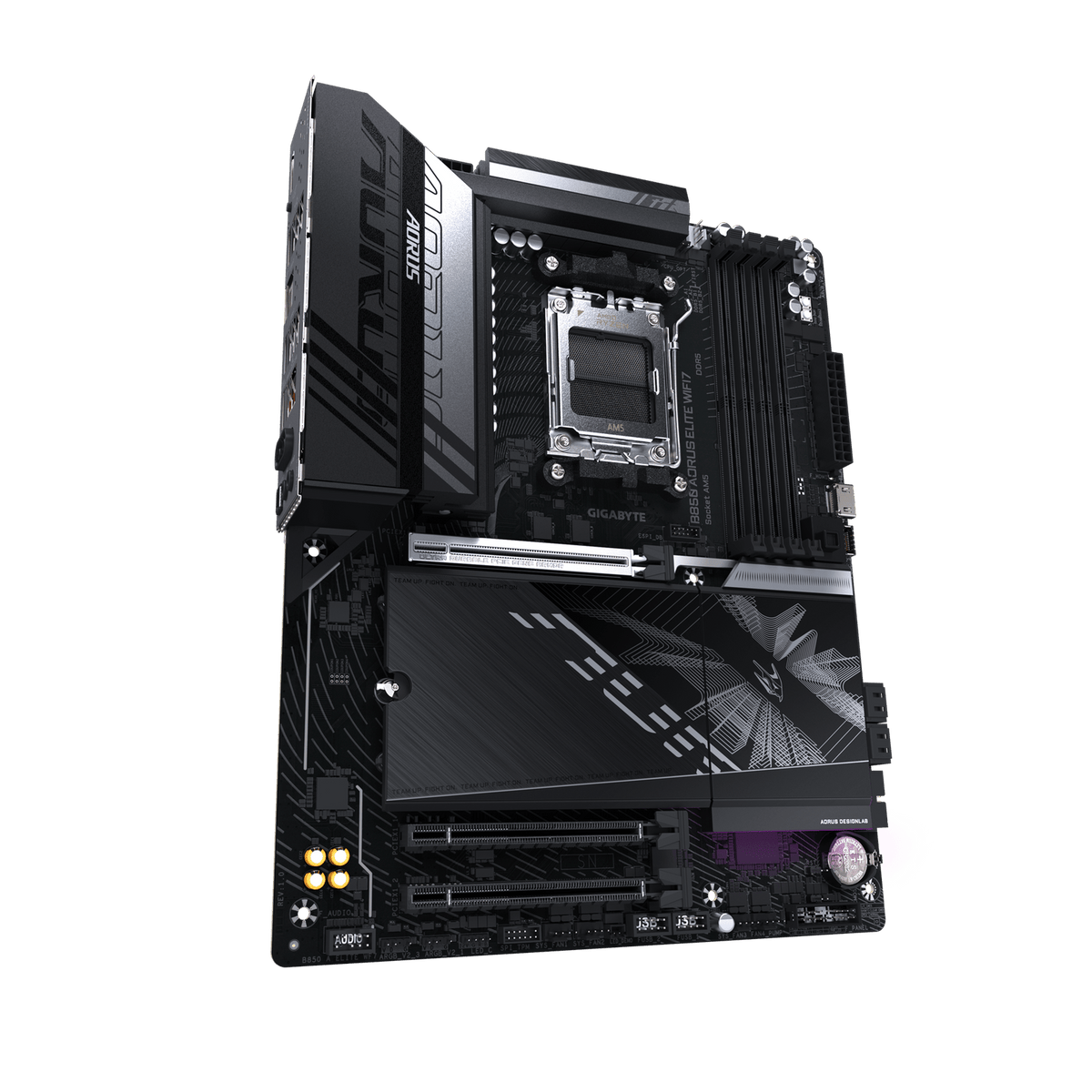

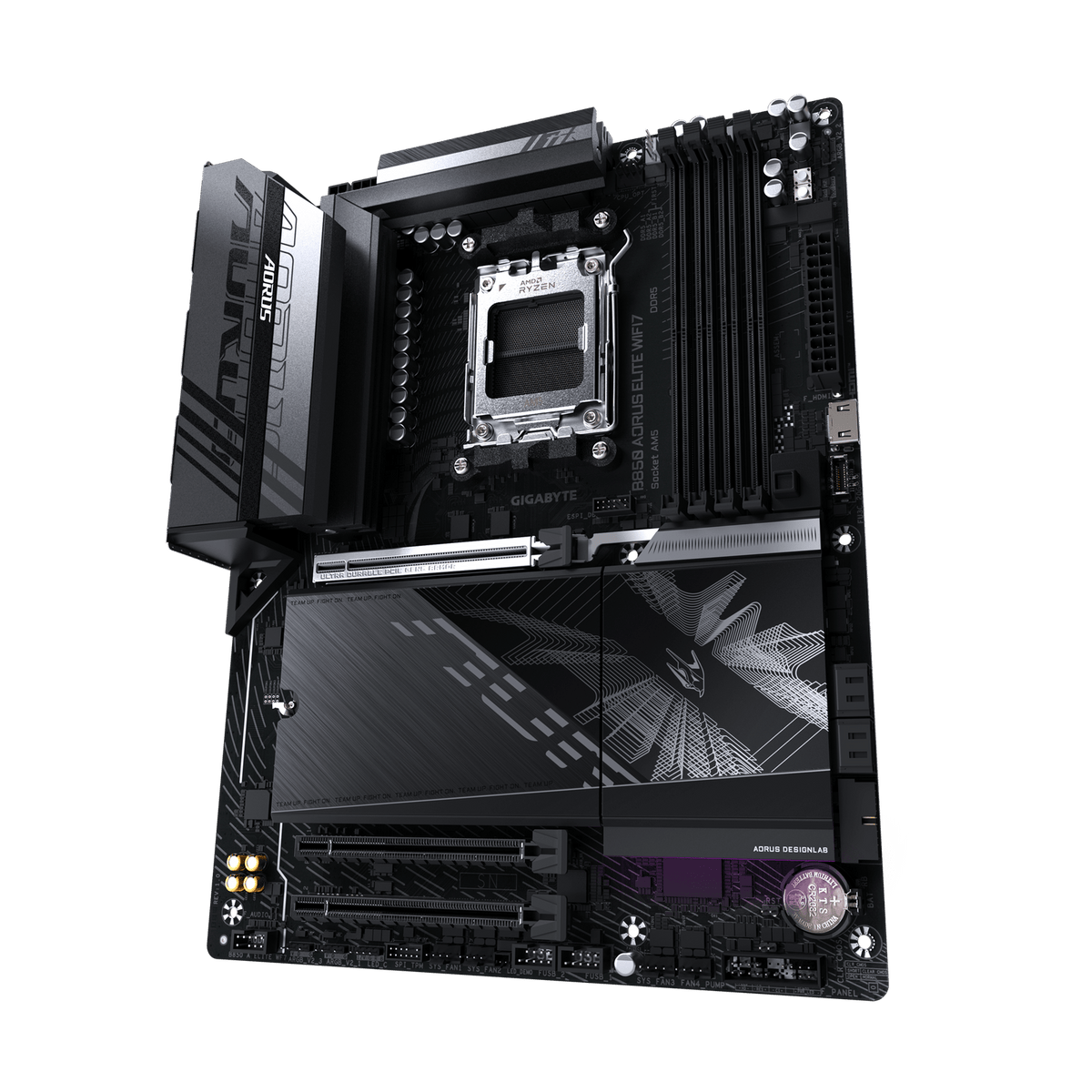

Gigabyte B850 Aorus Elite WIFI7
ATX AM5 Motherboard with Advanced Gaming Features, Wi-Fi 7, and PCIe 5.0
The B850 Aorus Elite WIFI7 delivers exceptional performance for gaming and productivity. Featuring AMD Socket AM5 support for Ryzen 9000/8000/7000 series processors, advanced DDR5 memory support up to 8200MT/s, and next-generation Wi-Fi 7 connectivity. Built with a robust 14+2+2 power phase design, PCIe 5.0 slots, and three M.2 storage interfaces, this motherboard provides the foundation for a high-performance PC build.
Performance & Gaming Features
X3D Turbo Mode
Unlock next-generation gaming performance with AMD X3D technology optimization. Designed to maximize frame rates and reduce latency for competitive gaming.
14+2+2 Phases VRM
Digital twin power design with 14 CPU phases, 2 for integrated graphics, and 2 for memory controller. Ensures stable power delivery even under heavy overclocking loads.
PCIe 5.0 x16 Slot
Full-length PCIe 5.0 slot with 10X structural strength for graphics cards. Features enhanced shielding and improved heat dissipation for maximum GPU performance.
DDR5 Memory Support
Four DDR5 DIMM slots supporting up to 256GB system memory. Optimized for AMD EXPO profiles with overclock speeds up to 8200MT/s for blazing-fast performance.
Ultra-Fast Storage
Three M.2 slots including one PCIe 5.0 x4 and two PCIe 4.0 x4 interfaces. Plus four SATA 6Gb/s ports with RAID 0/1/5/10 support for flexible storage configurations.
Wi-Fi 7 Connectivity
Next-generation Realtek Wi-Fi 7 (RTL8922AE) with 2T2R antennas. Supports 2.4/5/6 GHz bands, 160MHz channels, and Bluetooth 5.4 for comprehensive wireless connectivity.
Advanced Cooling Solutions
VRM Thermal Armor Advanced
Integrated MOSFET heatsinks with finned design provide efficient heat dissipation. Covers the entire VRM area to maintain optimal temperatures during demanding workloads.
M.2 Thermal Guard EXT
Extended M.2 heatsinks with thermal pads prevent throttling on high-speed PCIe 5.0 SSDs. Ensures consistent storage performance during large file transfers and gaming.
Smart Fan 6 Control
Comprehensive fan control with temperature sensors throughout the board. Supports PWM and DC fans with automatic detection and customized fan curves via BIOS or software.
Innovative Design Features
EZ-Latch Plus
Quick-release mechanism for PCIe and M.2 slots. Tool-free installation and removal of graphics cards and expansion cards saves time during builds and upgrades.
EZ-Latch Click
Screwless M.2 heatsink design with push-pin installation. M.2 thermal guards snap on securely without tools, simplifying SSD mounting and maintenance.
Wi-Fi EZ-Plug
Enhanced Wi-Fi antenna connectors with push-pin design. Provides stable antenna connection with one-handed operation and improved signal quality.
Sensor Panel Link
Onboard internal video output port enables easy connection to chassis-mounted display panels. View BIOS information and system diagnostics without opening the case.
Q-Flash Plus
Update BIOS without installing CPU, memory, or graphics card. Simply download the BIOS file to USB and press the Q-Flash Plus button on the rear I/O panel.
Friendly BIOS UI
Multi-theme BIOS with graphical interface, AIO fan control, and Q-Flash Auto Scan. Gigabyte Control Center software provides intuitive Windows-based system management.
Connectivity & Expansion
Internal Headers: 1x USB Type-C (USB 3.2 Gen 2x2), 1x USB 3.2 Gen 1, 2x USB 2.0
Note: USB 3.2 Gen 2x2 internal header supports up to 20Gbps data transfer speeds for front panel USB-C devices.
Note: Display outputs vary depending on installed APU. Supports AMD Radeon Graphics with multiple monitor configurations for versatile display setups.
Networking: Realtek 2.5GbE LAN chip (2.5/1/100 Mbps) for fast wired connections, plus Wi-Fi 7 with directional high-gain antennas
Technical Specifications
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors (Socket AM5) |
| Chipset | AMD B850 |
| Memory | 4x DDR5 DIMM, Max 256GB, 8200MT/s (OC), Dual Channel, AMD EXPO / XMP support |
| Graphics | Integrated AMD Radeon Graphics: 1x DisplayPort 1.4, 1x HDMI 1.4 (front) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 2x PCIe 3.0 x1 (chipset) |
| Storage | 1x M.2 PCIe 5.0 x4, 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s, RAID 0/1/5/10 |
| Network | Realtek 2.5GbE LAN, Realtek Wi-Fi 7 RTL8922AE (2.4/5/6 GHz), Bluetooth 5.4 |
| USB | USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 (see connectivity section) |
| Audio | Realtek Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out |
| Internal I/O | 24-pin ATX, 8-pin + 4-pin 12V, CPU fan, water pump, 3x system fans, 3x ARGB, 1x RGB |

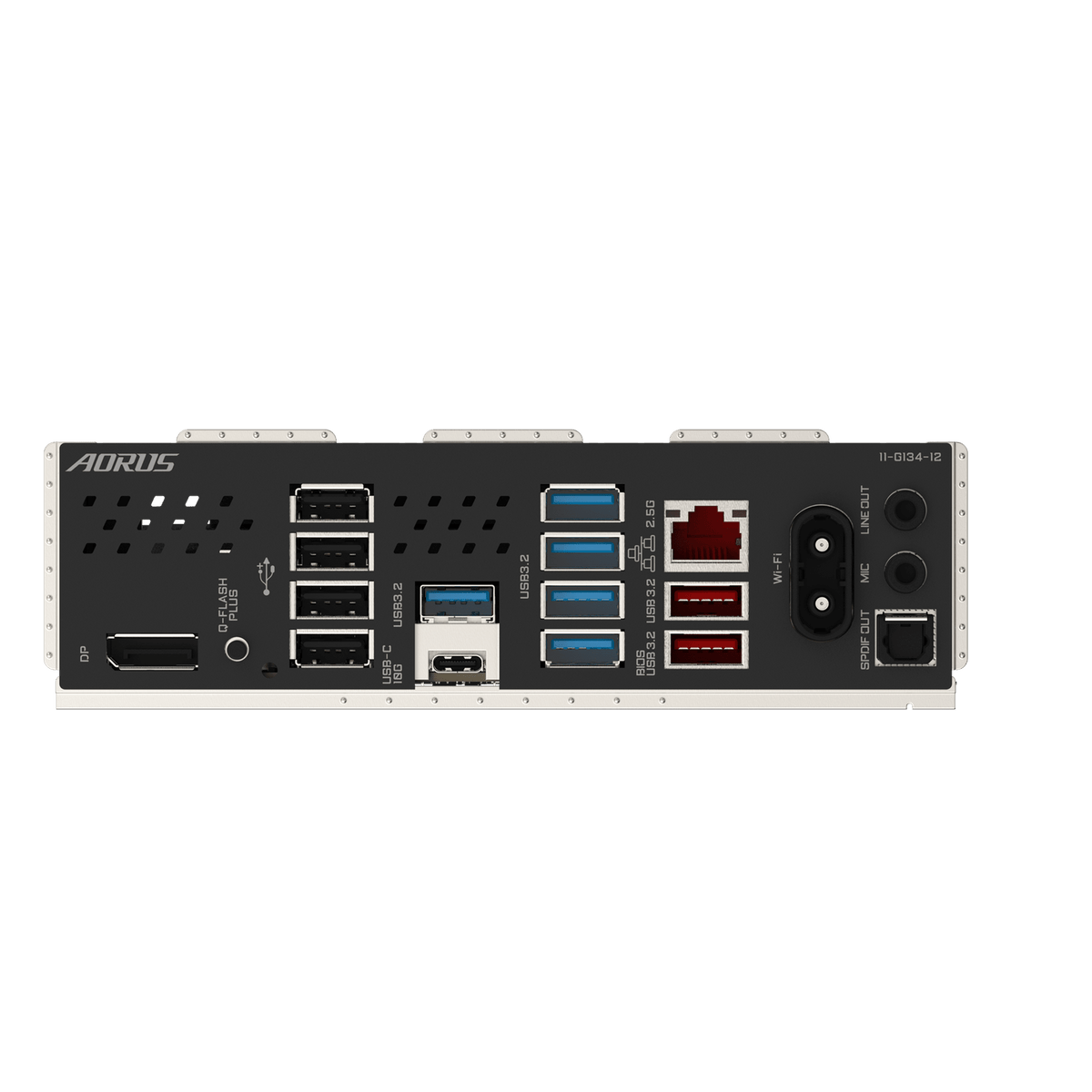

| Back Panel | DisplayPort, Q-Flash Plus button, 4x USB 2.0, USB-C (USB 3.2 Gen 2), 5x USB 3.2 Gen 1, 2x USB 3.2 Gen 2 (red), 2.5GbE LAN, antenna, audio jacks, S/PDIF |
| Form Factor | ATX (30.5cm x 24.4cm) |
| OS Support | Windows 11 64-bit |
| Software | Gigabyte Control Center, Norton Internet Security, LAN bandwidth management |
