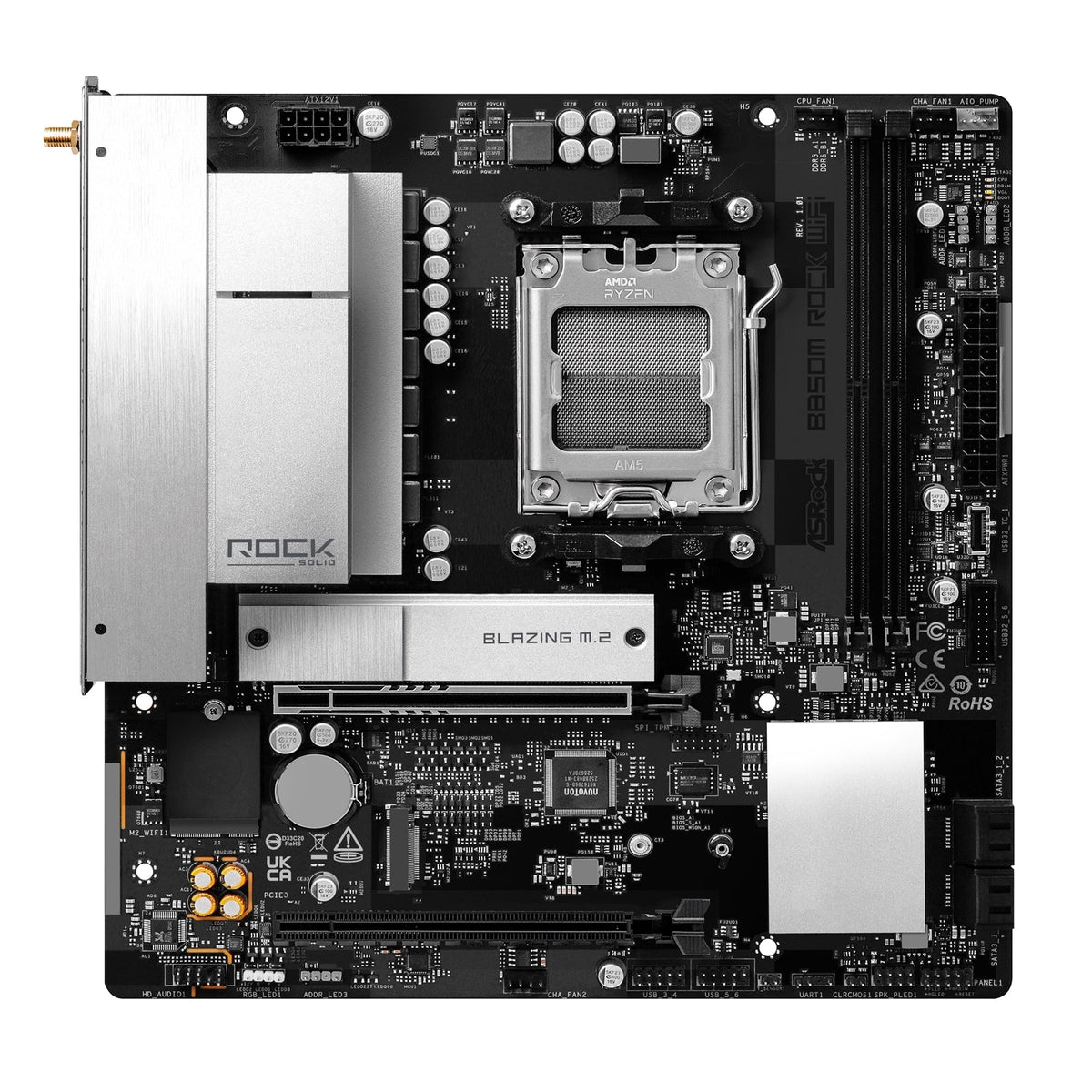

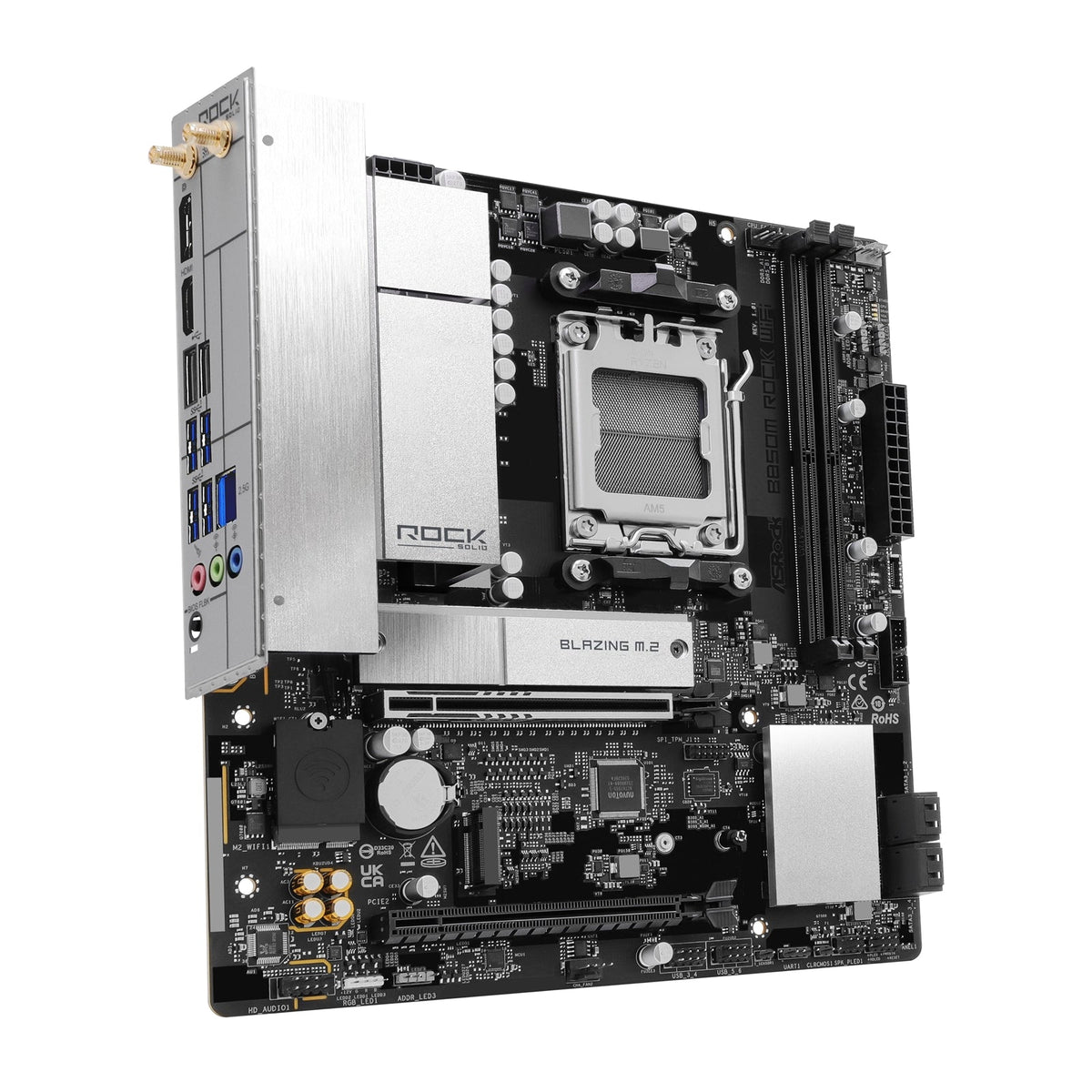

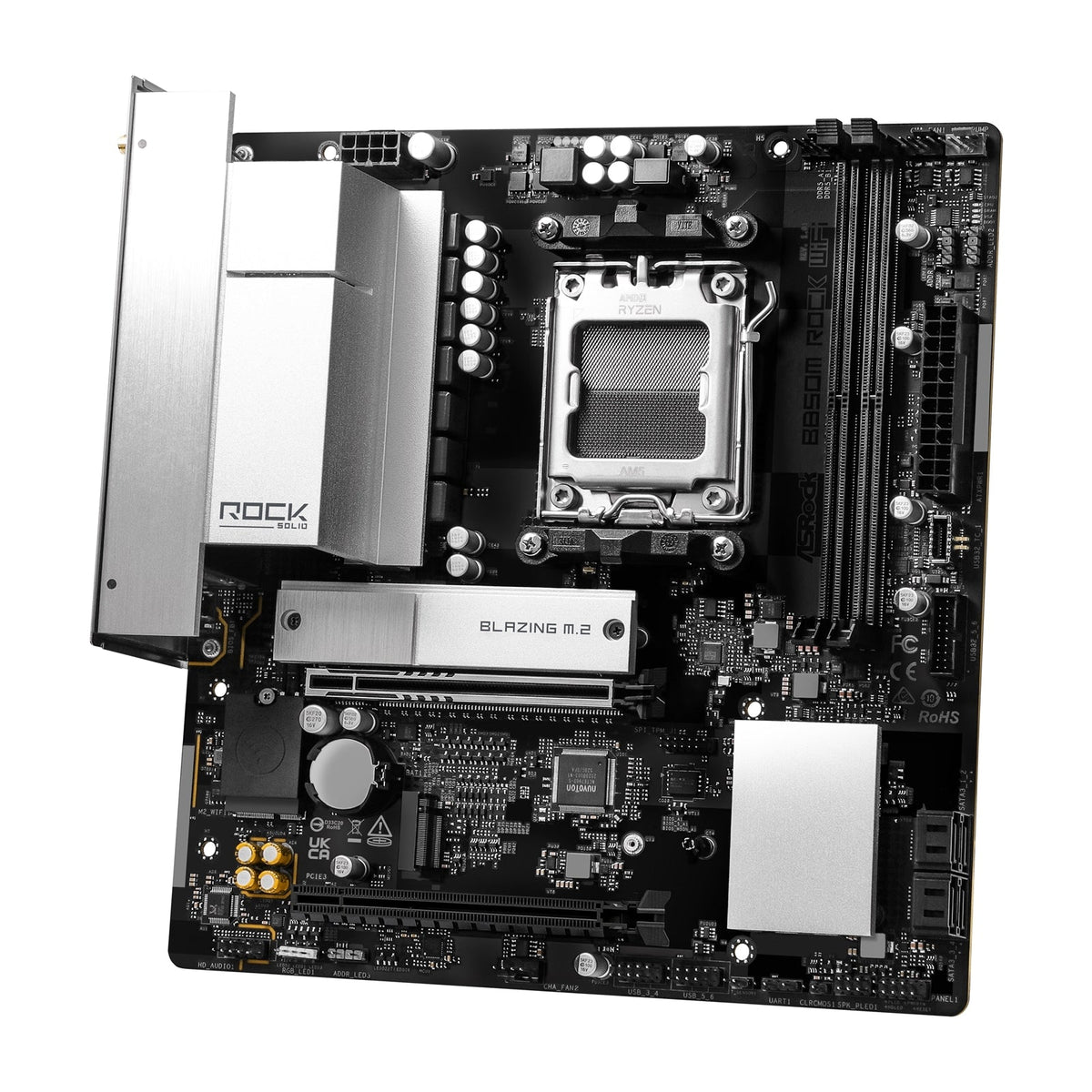

ASRock B850M Rock WiFi Micro-ATX AM5 Motherboard

The ASRock B850M Rock WiFi is a Micro-ATX motherboard designed for the AMD AM5 socket, supporting Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B850 chipset, it offers a high-performance foundation for both gaming and productivity builds, featuring support for dual-channel DDR5 memory and PCIe Gen5 technology for next-generation graphics and storage.

Key Features

• Power Design: Features a 6+1+1 power phase design with Dr.MOS for VCore to ensure rock-solid durability and stability under load.
• Memory Support: Two DDR5 DIMM slots supporting up to 128GB of memory with overclocking speeds reaching 8200+ MHz. Compatible with AMD EXPO and Intel XMP profiles.
• Next-Gen Storage: Includes a Blazing M.2 socket (PCIe Gen5 x4) and a Hyper M.2 socket (PCIe Gen4 x4) for high-speed NVMe SSDs, alongside four SATA3 connectors.
• Expansion Slots: One PCIe 5.0 x16 slot for graphics cards and one PCIe 3.0 x16 slot (running at x4 mode) for additional expansion.
• Connectivity: Integrated 2.5G LAN for high-speed wired networking and an 802.11axe Wi-Fi 6E module with Bluetooth 5.3 support.
• EZ Features: Equipped with a BIOS Flashback button and the ASRock Auto Driver Installer for simplified setup and maintenance.

Specifications

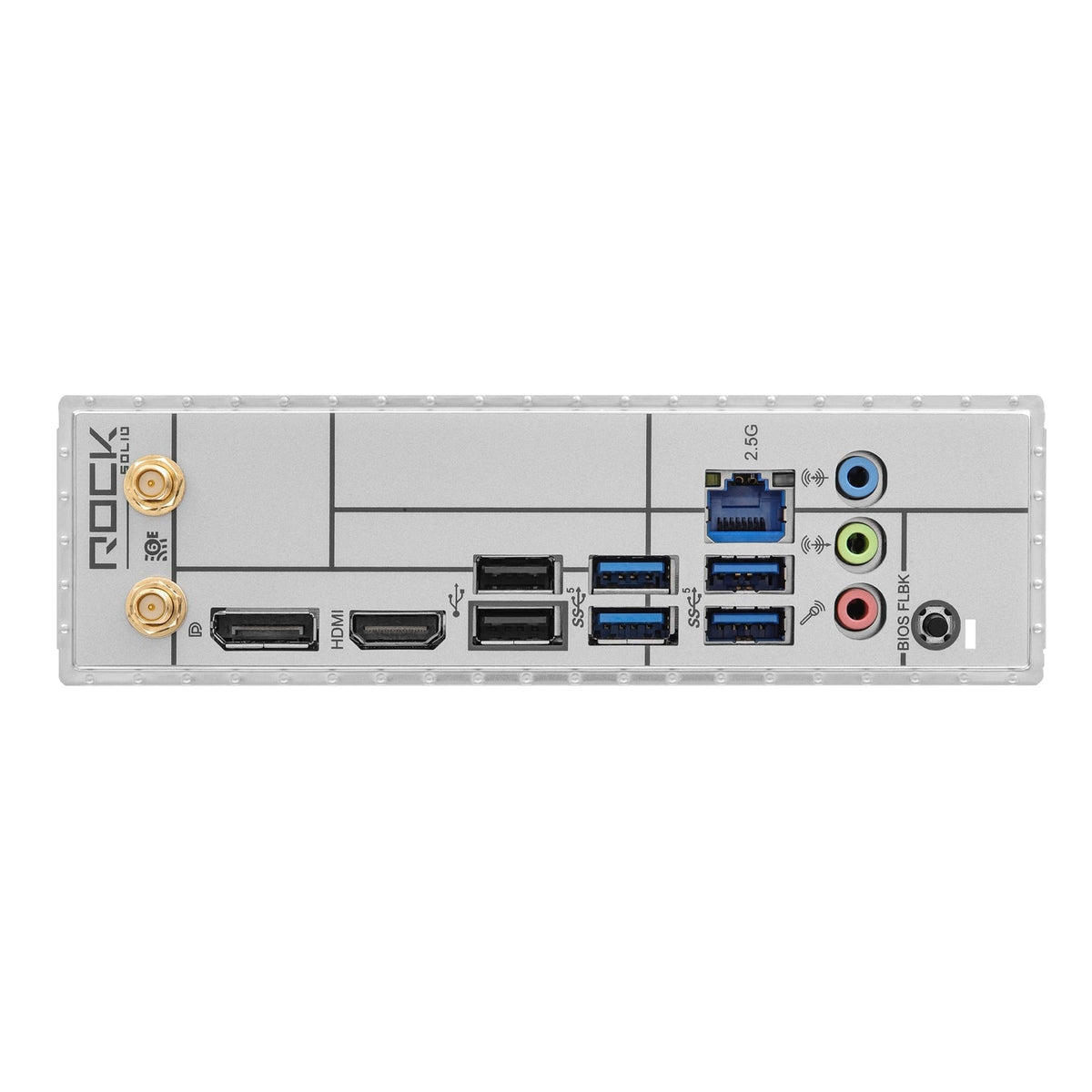

I/O & Connectivity

• Rear USB Ports: 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0.
• Front USB Headers: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0.
• Display Outputs: 1 x HDMI 2.1 (supports 4K 120Hz), 1 x DisplayPort 1.4 with DSC (supports 4K 120Hz).
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) with three HD audio jacks.

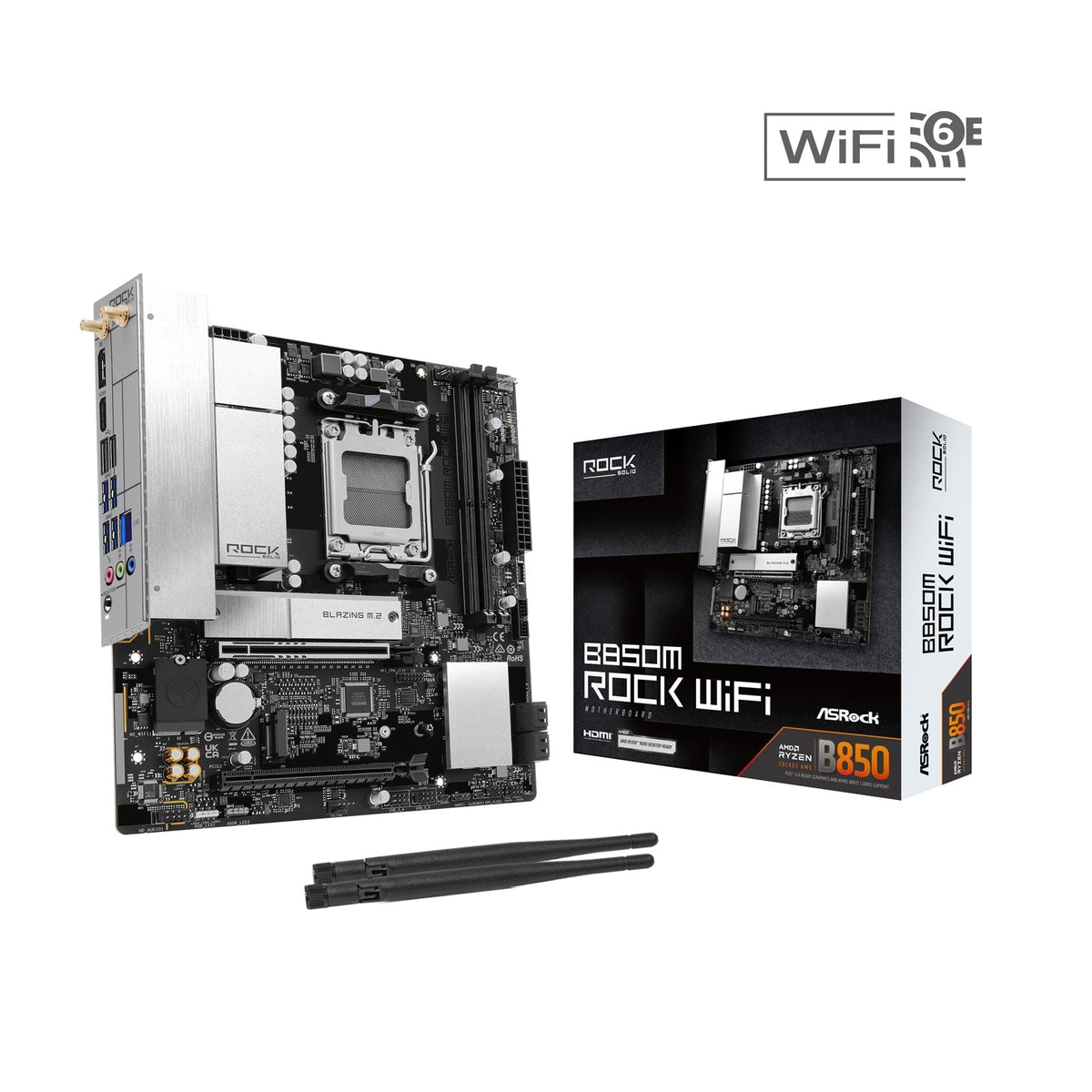

• Box Contents: 2 x SATA data cables, 2 x ASRock Wi-Fi 2.4/5/6 GHz antennas.
